SM series pump equivalent to NOV Mission Magnum I pump, which are rated for continuous service in applications up to 200 hp and are available in hard iron, stainless steel, aluminum bronze, and high chrome with capacities up to 3,400 gal/min and pressure head up to 550 ft. Some sizes are offered with a counterclockwise rotation giving the user more flexibility.
SM series Mission Magnum Pump has been the most popular centrifugal pump because of its proven reliability, durability, and economical structure.The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in hard iron and stainless steel. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Sunbo Machinery 8x6x14 Mission Circulating Drilling Mud Pumps are used to circulate drilling mud on drilling rig at high pressure. They can driven either by engine/motor. Sunbo Machinery can unitize a pump, engine, motor, and gearbox into a complete turn-key packaged pumping system for handling drilling mud.
Sunbo Machinery 8x6x14 Mission Magnum pumps are packed with innovative features to handle a wide range of routine or demanding abrasive and corrosive applications. In addition, our MISSION pumps are designed for a wide range of flow rates, from a few gallons per minute to thousands of gallons per minute, up to 3,400 gallons per minute, providing you with greater flexibility in your application choices.
The main parts are pump housing, impellers, bearing block, pump axle, bearing, shaft coupling, wearing plate, seal apparatus, oil seal, motor and base.
The 8x6x14 Mission Magnum Pump has these features:
● Open impeller, apply to dealing high viscosity drilling liquid.
● Combination seal for a long service life.
● Use universal bearing houses and bearings, convenient to maintain and cut the costs.
● The major parts are made from anti-wear nodular iron, and long service life.

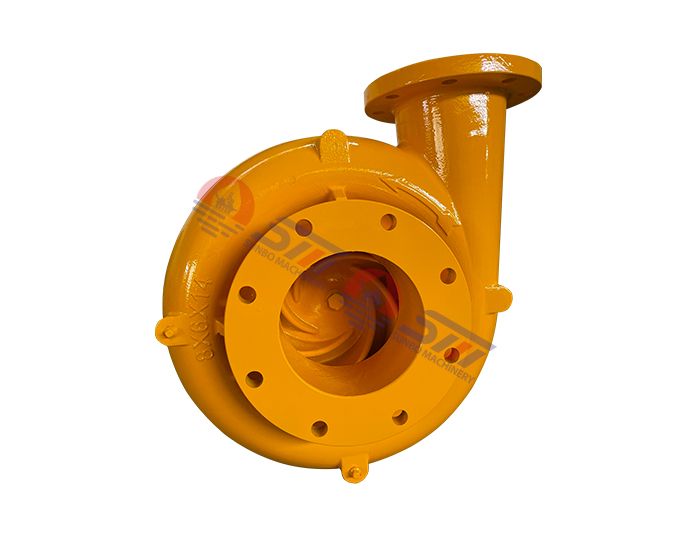

Mission Magnum 6x5x14 Centrifugal Mud Pump for Oilfield
Mission Mud Pump 8x6x11 Drilling Pump

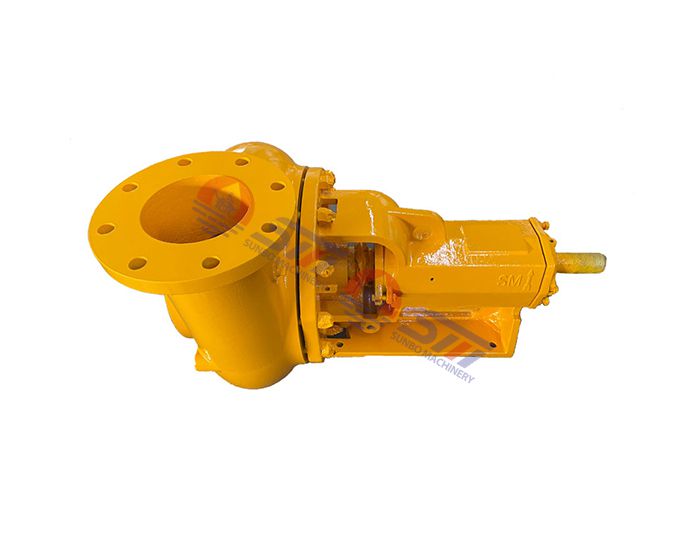

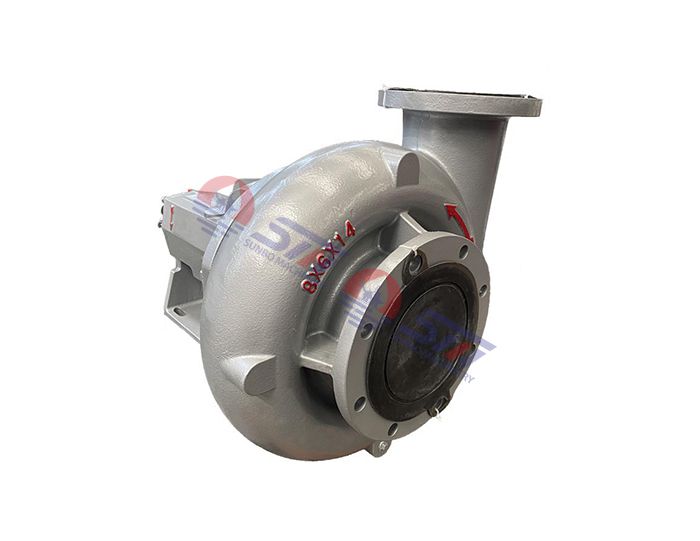

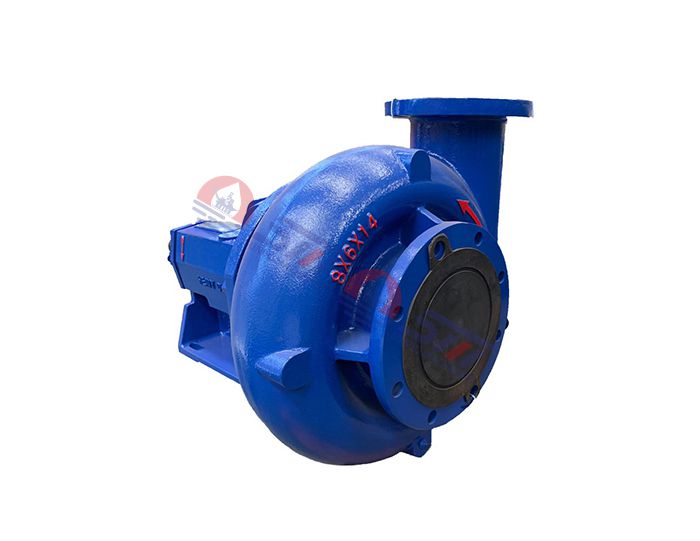

8x6x14 Mission Magnum Pumps
● Sand Slurry
● Charge Pump
● Blender
● Waterwell Drilling
● Puple and Paper
● Slag
● Food Processing
● Sweage
● Cooper, bauxite, and quarry slurries
● Zinc, Ore, coal tailings
| Model | SM 10x8x14 | SM 8x6x14 | SM 8x6x11 | SM 6x5x14 |
| Discharge Volume (Max.) | 4300 gpm | 2600 gpm | 2150 gpm | 1825 gpm |
| Discharge Head (Max.) | 175ft | 205ft | 120ft | 225ft |
| PRM (min.-max.) | 1200~1800 | 1200~1800 | 1200~1800 | 1200~1800 |
| Inlet Diameter ( inch ) | 10 | 8 | 8 | 6 |
| Outlet Diameter ( inch ) | 8 | 6 | 6 | 5 |
| Weight (lb) | 705 | 595 | 595 | 529 |
| Dimension ( inch ) | 38 x 26 x 26 | 38 x 25 x 25 | 38 x 24 x 24 | 36 x 22 x 21 |
| Model | SM 6x5x11 | SM 5x4x14 | SM 4x3x13 | SM 3x2x13 |
| Discharge Volume (Max.) | 1800 gpm | 1150 gpm | 875 gpm | 550 gpm |
| Discharge Head (Max.) | 120ft | 215ft | 530ft | 500ft |
| PRM (min.-max.) | 1200~1800 | 1200~2100 | 1200~3600 | 1200~3600 |
| Inlet Diameter ( inch ) | 6 | 5 | 4 | 3 |
| Outlet Diameter ( inch ) | 5 | 4 | 3 | 2 |
| Weight (lb) | 529 | 529 | 445 | 432 |
| Dimension ( inch ) | 36 x 20 x 20 | 36 x 20 x 20 | 34 x 19 x 19 | 34 x 19 x 19 |

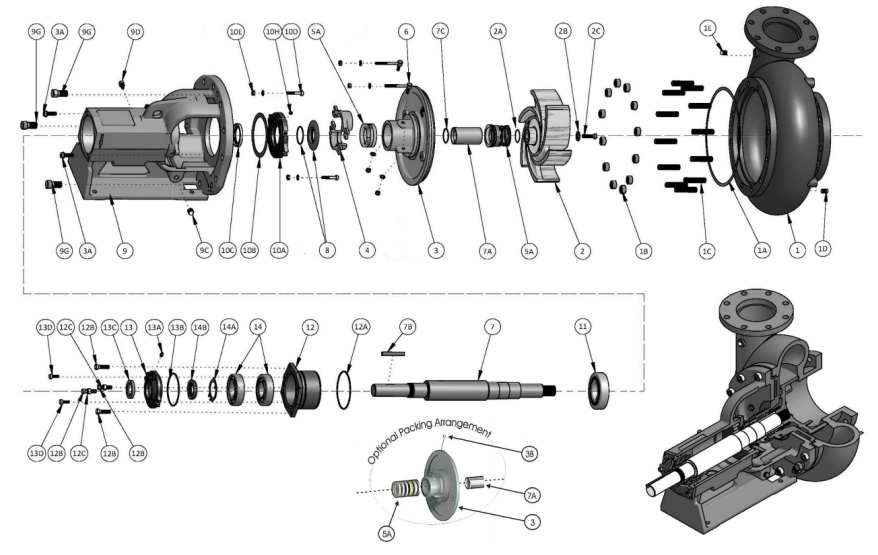

| ITEM | Qty.of 1 pump | MISSIONPART No. | DESCRIPTION | Qty. of 1 year | Qty. of 2 years | Qty. of 3 years | ||
| 1* | 1 | See below | Casing | 1 | 1 | 2 | ||
| 1A | 1 | 10399-46-1 | Gasket,casing | |||||
| 1B | 12 | 3932-61 | Nut,casing | |||||
| 1C | 12 | 3862-76 | Stud,casing | |||||
| 1D | 1 | 8505-04-01 | Plug,Casing Drain | |||||
| 1E | 1 | 8505-04-01 | Plug,flush line | |||||
| 2* | 1 | See below | Impeller | 2 | 3 | 4 | ||
| 2A | 1 | 19110-72 | Seal,impeller | |||||
| 2B | 1 | Washer,impeller | ||||||
| 2C | 1 | Bolt,impeler lock | 1 | 1 | 2 | |||
| 3*# | 1 | 22223-01-30 | Stuffing box,mech.seal | 1 | ||||
| 3*& | 1 | 20614-01-30 | Stuffing box,packed | |||||
| 3A | 2 | 3861-117 | Bolt,stuffing box | |||||
| 3B& | 1 | 19368-01 | Grease fitting | |||||
| 4 | 1 | 20622A | Gland assy,packing | 0 | 0 | 1 | ||
| 5A# | 1 | 22451-1 | Seal,mechanical | 1 | 2 | 3 | ||
| 5A# | 3 | Packing, Shaft - M.S. Backup | 2 | 4 | 6 | |||
| 6 | 2 | B3701A | Bolt assy,gland | |||||
| 7 | 1 | 20612-02-33 | Shaft | 1 | 1 | 2 | ||
| 7A | 1 | 20943-04A | Sleeve,shaft | 2 | 3 | 4 | ||
| 7B | 1 | 4371-5-21 | Key,shaft | |||||
| 7C | 1 | 23444-01-72 | Seal,shaft sleeve | |||||
| 8 | 1 | 22210-1A | Deflector assembly | |||||
| 9 | 1 | 20618-12-1 | Frame,grease lubricated | 0 | 0 | 1 | ||
| 9C | 1 | 8505-04-01 | Plug, Frame Drain | |||||
| 9D | 1 | 8267-01 | Breather | |||||
| 9G | 3 | 2538-1H | Bolt,casing jack | |||||
| 10A | 1 | 20626 | Cover,inboard bearing | 0 | 0 | 1 | ||
| 10B | 1 | 20625 | Gasket,I.B.Brg.Cover | |||||
| 10C | 1 | 20619-01 | Oil seal, I.B.Brg.Cover | 2 | 4 | 6 | ||
| 10D | 2 | 3861-1 | Bolt, I.B.Brg.Cover | |||||
| 10E | 2 | 3932-2 | Nut, I.B.Brg.Cover | |||||
| 10H | 1 | 19368-01 | Grease fitting | |||||
| 11 | 1 | 20615-1 | Bearing,inboard | 1 | 1 | 2 | ||
| 12 | 1 | 20624-01-01 | Housing,O.B.bearing | 0 | 0 | 1 | ||
| 12A | 1 | 7496-253 | Seal, O.B.Brg.housing | |||||
| 12B | 4 | 3861-138 | Bolts, O.B.Brg.housing | |||||
| 12C | 2 | 3932-62 | Nut, O.B.Brg.housing jam | |||||
| 13 | 1 | 20617A | Cover,O.B.Bearing | 0 | 0 | 1 | ||
| 13A | 1 | 19368-01 | Grease zerk, O.B.Brg.Cover | |||||
| 13B | 1 | 7496-26 | O-ring, O.B.Brg.Cover | |||||
| 13C | 1 | 20619-02 | Oil seal, O.B.Brg.Cover | 2 | 4 | 6 | ||
| 13D | 2 | 3861-139 | Bolt, O.B.Brg.Cover | |||||
| 14 | 2 | 20616-1 | Bearing, O.B. | 1 | 1 | 2 | ||
| 14A | 1 | 6124-4 | Lockwasher,O.B.Bearing | |||||
| 14B | 1 | 6123-4 | Locknut, O.B.Bearing | |||||
| Casings | ||||||||
| 1* | 1 | 19203-01-30A | Casing,3×2×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19205-01-30A | Casing,4×3×13 | 1 | 1 | 2 | ||
| 1* | 1 | 19222-01-30A | Casing,5×4×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19122-01-30A | Casing,6×5×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19123-01-30A | Casing, 6×5×14 | 1 | 1 | 2 | ||
| 1* | 1 | 19763-01-30A | Casing, 8×6×11 | 1 | 1 | 2 | ||
| 1* | 1 | 19117-01-30A | Casing,8×6×14 | 1 | 1 | 2 | ||
| 1* | 1 | 20937-01-30A | Casing,10×8×14 | 1 | 1 | 2 | ||
| Impellers | ||||||||
| 2* | 1 | 19204-XX-30 | Impeller,3×2×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19206-XX-30 | Impeller,4×3×13 | 2 | 3 | 4 | ||
| 2* | 1 | 19224-XX-30 | Impeller,5×4×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller,6×5×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 6×5×14 | 2 | 3 | 4 | ||
| 2* | 1 | 19121-XX-30 | Impeller, 8×6×11 | 2 | 3 | 4 | ||
| 2* | 1 | 19116-A0-30 | Impeller,8×6×14 | 2 | 3 | 4 | ||
| 2* | 1 | 21867-XX-30 | Impeller,10×8×14 | 2 | 3 | 4 | ||
