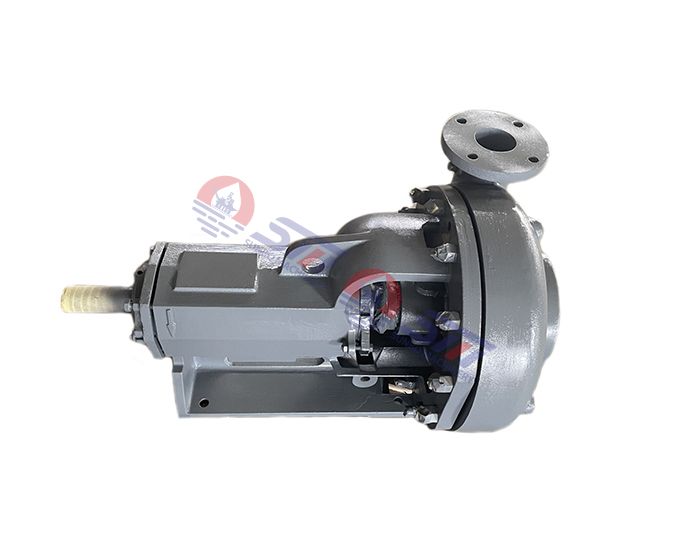

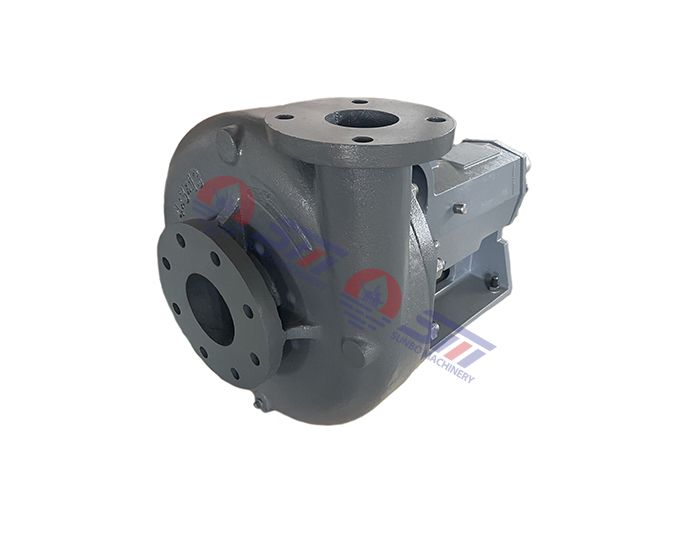

One of our most demanded models, the 4x3x13 centrifugal pump, is specifically engineered for high-pressure, high-speed operations. It’s ideal for oil-based mud, cement transfer, and drilling fluid circulation.
Model: SM 4x3x13
Max Flow Rate: 875 GPM
Max Discharge Head: 530 ft
Speed Range: 1200 – 3600 RPM
Inlet/Outlet: 4" / 3"
Weight: 445 lb
Dimensions: 34 x 19 x 19 inch
Applications: Frac pump, mud pump, centrifugal sludge pump, transfer pump, filling pump, and more
If you’re looking for a reliable 4x3x13 centrifugal pump to support heavy-duty industrial or oilfield operations, this model offers the perfect balance of flow rate, pressure, and durability.

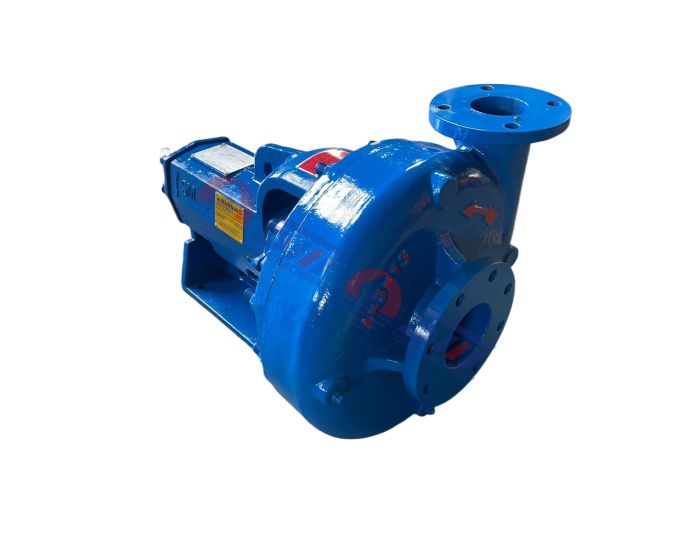

SM Series Mission Magnum mud pump is designed based on the imported Mission Magnum I pump, which has been proven to be the best centrifugal design for handling abrasive mud in drilling, well-servicing and industrial applications, as more powerful, more durable and easier to maintain than any conventional pumps in use today. It is always used for transferring the drilling fluid or mud/slurry with some solids or seawater.
Our materials include hard iron, ductile iron, high chrome iron, stainless steel and al-bronze. We use resin sand casting and coating sand casting processes to cast raw material, and machine by CNC or NC machines. Except for our own brand pumps, we also accept customized brand pumps and spare parts.
We offer NOT ONLY bare pumps, but also complete pump packages. We also offer replacement Centrifugal Pumps, as well as refurbishment and repair of your existing pumps bought from NOV Mission Magnum Pump, Halco, FORUM BAKER SPD MUD HOG 2.5 Series Pump, O'Drill MCM, Forum Energy, Double Life, Southwest, ABCO, Mesco, TSC, Midcontinents, Dupagro or any China Mission pump supplier.
| Model | SM 10x8x14 | SM 8x6x14 | SM 8x6x11 | SM 6x5x14 |
| Discharge Volume (Max.) | 4300 gpm | 2600 gpm | 2150 gpm | 1825 gpm |
| Discharge Head (Max.) | 175ft | 205ft | 120ft | 225ft |
| PRM (min.-max.) | 1200~1800 | 1200~1800 | 1200~1800 | 1200~1800 |
| Inlet Diameter ( inch ) | 10 | 8 | 8 | 6 |
| Outlet Diameter ( inch ) | 8 | 6 | 6 | 5 |
| Weight (lb) | 705 | 595 | 595 | 529 |
| Dimension ( inch ) | 38 x 26 x 26 | 38 x 25 x 25 | 38 x 24 x 24 | 36 x 22 x 21 |
| Model | SM 6x5x11 | SM 5x4x14 | SM 4x3x13 | SM 3x2x13 |
| Discharge Volume (Max.) | 1800 gpm | 1150 gpm | 875 gpm | 550 gpm |
| Discharge Head (Max.) | 120ft | 215ft | 530ft | 500ft |
| PRM (min.-max.) | 1200~1800 | 1200~2100 | 1200~3600 | 1200~3600 |
| Inlet Diameter ( inch ) | 6 | 5 | 4 | 3 |
| Outlet Diameter ( inch ) | 5 | 4 | 3 | 2 |
| Weight (lb) | 529 | 529 | 445 | 432 |
| Dimension ( inch ) | 36 x 20 x 20 | 36 x 20 x 20 | 34 x 19 x 19 | 34 x 19 x 19 |
● Revolutionary design on Mission Magnum I series
● Size from 3 x 2 x 13 to 10 x 8 x 14
● Flow rates from a few gallons per minute up to 4300 GP
● Head pressure up to 550 feet
● Best utilized requiring up to 200HP
● For the toughest jobs in drilling, production, well-servicing, and mineral industry
● Perfect for oil-based drilling mud, cement, slurry, mine dewatering, etc.
● Powerful, durable and easy to maintain
● Available in hard iron, stainless steel, high chrome alloy and aluminum bronze fluid ends
● Processed in resin/green sand casting, lost-form casting, coated sand-casting investment
● Hydro-testing before painting and packing
● Interchangeable with other popular brands
● Available to be driven by electric motor, diesel engines, hydraulic motors
● Available configuration in horizontal, overhead belt, vertical, close-coupled
According to the different working conditions, Mission Magnum Pump 4x3x13 can be used as Frac discharge pump, Frac suction pump, Oil drilling centrifugal pump, electric centrifugal transfer pump, Skid mounted mixing pump, Transfer pump, Trash pump, Grinding pump, Circulating mud pump, Centrifugal sludge pump, Drilling fluid centrifugal pump, Horizontal directional drilling pump, Denver pump, Filling pump, Feeding pump, etc
The 4x3x13 centrifugal pump is widely used in oilfield, mining, and industrial pumping systems where abrasive fluids and continuous-duty operation require reliable performance.
Typical applications include:
● Oil & gas drilling mud circulation
● Solids control systems
● Frac suction and discharge systems
● Cement slurry transfer
● Horizontal directional drilling (HDD)
● Mine dewatering
● Tailings transportation
● Industrial wastewater pumping
● Sand and slurry handling
● Chemical process fluid transfer
Its combination of high head, excellent wear resistance, and easy maintenance makes the Mission Magnum Pump 4x3x13 a preferred choice for contractors and drilling service companies worldwide.
The Mission Magnum Pump 4x3x13 is engineered for demanding drilling and industrial fluid handling applications where reliability, wear resistance, and stable hydraulic performance are essential. Designed as a fully interchangeable replacement for OEM Mission Magnum pumps, our 4x3x13 centrifugal pump delivers dependable performance while helping reduce maintenance costs and downtime.
● Fully interchangeable with Mission Magnum® 4x3x13 pumps
● High-efficiency hydraulic design for stable flow and pressure
● Available in hard iron, high chrome alloy, stainless steel, and aluminum bronze
● CNC-machined components for precise fit and long service life
● Compatible with electric motors, diesel engines, and hydraulic drives
● Factory-direct pricing with OEM and ODM manufacturing services
● Complete pump assemblies and replacement spare parts available
Whether you need a Mission Magnum Pump 4x3x13 for drilling mud circulation, solids control, or industrial slurry transfer, our engineering team can recommend the most suitable configuration for your operating conditions.
In addition to complete pumps, we manufacture a full range of Mission Magnum Pump 4x3x13 replacement parts to minimize maintenance costs and extend equipment life.
● 4x3x13 Impeller
● Pump Casing
● Shaft
● Shaft Sleeve
● Mechanical Seal
● Packing Seal
● Bearing Housing
● Bearings
● Wear Plate
● Seal Kit
● Gaskets
All parts are manufactured according to OEM dimensions for easy installation and interchangeability with standard Mission Magnum pumps.
Choosing the correct 4x3x13 centrifugal pump depends on several operating factors, including flow rate, discharge head, fluid characteristics, solids concentration, and installation requirements.
Our experienced engineers can help you select the most suitable pump based on:
● Required flow capacity
● Operating head
● Pump speed
● Fluid viscosity
● Solid particle size
● Material requirements
● Drive system
● Working environment
Simply send us your project specifications, and we'll recommend the most appropriate Mission Magnum Pump 4x3x13 solution together with a competitive factory quotation. Contact us today.
The Mission Magnum Pump 4x3x13 provides a maximum flow rate of approximately 875 GPM, making it suitable for high-pressure drilling fluid and slurry transfer applications.
Yes. Our 4x3x13 centrifugal pump is manufactured to OEM dimensions and is fully interchangeable with standard Mission Magnum 4x3x13 pumps and compatible replacement parts.
We offer hard iron, high chrome alloy, stainless steel, and aluminum bronze materials to meet different abrasive and corrosive operating conditions.
Yes. We provide OEM and ODM manufacturing services, including customized materials, branding, coatings, packaging, and technical configurations.
The Mission Magnum Pump 4x3x13 is widely used in oil & gas drilling, solids control, mining, slurry transfer, HDD projects, cement pumping, and industrial fluid handling systems.
