Pumps play a crucial role in moving liquids across industrial facilities, municipal systems, and residential settings. Among the many pump types available today, horizontal and vertical pumps stand out as two of the most widely used designs. While both serve the same fundamental purpose—transferring fluids efficiently—their structure, performance characteristics, and ideal applications differ significantly. Understanding these differences helps engineers, plant operators, and homeowners select the most suitable pump for their needs.
This article provides an in-depth comparison of horizontal and vertical pumps, explaining their design, strengths, advantages, and best-use scenarios. Whether you’re designing an industrial system or choosing a pump for your home, this guide will help you make a well-informed decision.

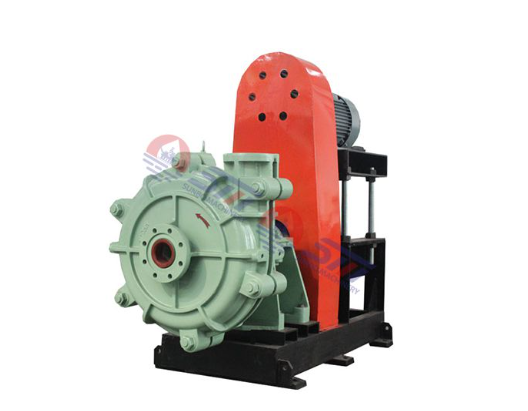

A horizontal pump installs with its shaft positioned horizontally, typically mounted on a solid base plate. The most common types include end-suction pumps and split-case pumps. These pumps feature an easy-to-access design, making installation, inspection, and replacement straightforward. They operate using centrifugal force to move liquid from the inlet to the outlet and are suitable for a wide range of flow rates and pressures.
Horizontal pumps are commonly used in HVAC systems, industrial water transfer, firefighting systems, agriculture, and general fluid handling applications. Their stable structure and ease of maintenance make them one of the most frequently selected pump types in the industry.

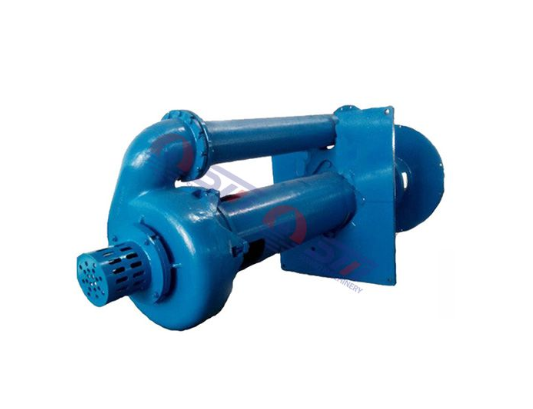

A vertical pump positions its shaft vertically, meaning the motor sits above the pump while the pumping components extend downward into the fluid. Popular variants include vertical inline pumps, vertical turbine pumps, and sump pumps. Because the pump occupies a smaller horizontal footprint, it becomes a preferred choice for tight installations or applications involving deep wells, pits, and tanks.
Vertical pumps excel in applications where high pressure is required, where fluid levels vary, or where suction lift limitations make horizontal pumps ineffective. Their design minimizes cavitation risks and handles large volumes efficiently, especially in municipal water supply, irrigation, and industrial processing.
Horizontal Pumps
Feature a horizontal shaft orientation
Require more floor space
Easy access to internal components
Usually installed at ground level
Include bearings on both ends of the shaft
Best suited for stable environments with room for installation
Vertical Pumps
Shaft orientation is vertical
Require less ground space but more height
The motor is mounted above the pump
Pumping elements can be submerged in fluid
Ideal for deep wells, pits, and limited-space environments
Reduced risk of cavitation due to submerged impellers
In short, horizontal pumps offer structural simplicity, while vertical pumps excel in areas with depth and limited floor space.
Horizontal Pump Performance
Extremely efficient for medium to high flow rates
Handles clean and moderately viscous fluids
Limited by suction lift; typically cannot exceed 7–8 meters
Performs optimally when suction conditions are stable
Vertical Pump Performance
Excellent for high-pressure, high-head applications
Can draw water from significant depths
Handles fluctuating fluid levels better
Reduced energy loss because impellers can be submerged
Generally, vertical pumps provide superior performance where high pressure and depth handling are required, while horizontal pumps deliver strong efficiency in moderate-flow applications.
Horizontal Pumps
Easier to maintain because components are accessible
Lower installation cost
Alignment requires attention, especially during startup
Maintenance can often be done without removing the entire pump
Vertical Pumps
Some components may be difficult to access
Motor stays dry and safe above fluid
Ideal for dirty water, pits, and corrosive environments
Repairs may require lifting equipment due to the pump’s depth
Horizontal pumps favor users who prioritize convenient serviceability, while vertical pumps are designed for demanding environments where immersion or deep suction is unavoidable.
Horizontal Pumps
Industries often choose horizontal pumps for:
Cooling systems
Chemical processing
Fire protection
General water transfer
Manufacturing systems
Their stability, reliability, and broad compatibility make them a standard choice for many industrial setups.
Vertical Pumps
Vertical pumps shine in industrial environments requiring:
High-pressure pumping
Deep well extraction
Cooling tower circulation
Wastewater movement
Handling fluids from pits, tanks, and basins
They provide more power and head, making them essential for municipal and large-scale industrial processes.
In residential or low-demand environments:
Horizontal pumps are ideal for household water supply, garden irrigation, pools, and small HVAC setups.
Sump pumps (a type of vertical pump) are commonly installed in basements to remove floodwater.
Vertical designs work better where water must be lifted vertically, while horizontal pumps work best for ground-level supply.
Cost
Horizontal pumps are usually more affordable to purchase and install.
Vertical pumps tend to cost more due to specialized components and deeper installation.
Reliability
Horizontal pumps offer stable and long-lasting performance with proper maintenance.
Vertical pumps offer high reliability in environments involving fluctuating water levels or submerged operation.
Lifespan
Both pump types can last decades with proper care.
Vertical turbine pumps often deliver exceptionally long service life in municipal and agricultural systems.
Split-Case Pumps
Known for high efficiency and easy maintenance
Widely used in water supply plants, fire protection, and industrial circulation
End-Suction Pumps
Compact and easy to install
Ideal for HVAC systems, irrigation, cooling, and general water boosting
Both models represent the most common horizontal pump designs used around the world.
Vertical Inline Pumps
Installed directly into piping systems
Save floor space and reduce vibration
Sump Pumps
Designed to remove pooling water
Ideal for basements, pits, and emergency drainage
Vertical Turbine Pumps
Used for deep wells and high-pressure water distribution
Common in municipal water supply, agriculture, and industrial utility systems
These vertical pump models cover a broad range of fluid handling needs.
1. Which pump lasts longer, horizontal or vertical?
Both can last many years, but vertical turbine pumps typically offer longer lifespans in large-scale applications.
2. Is a vertical pump more efficient?
Vertical pumps generally offer better efficiency in high-head or deep-water conditions.
3. Which pump is easier to maintain?
Horizontal pumps are easier because their components are more accessible.
4. Can horizontal pumps work for deep wells?
Not effectively. Deep wells require vertical turbine or submersible pumps.
5. Do vertical pumps require more installation space?
They require less floor space but more vertical clearance.
Horizontal and vertical pumps each offer unique advantages depending on the application. Horizontal pumps excel in ease of maintenance, installation simplicity, and moderate-pressure tasks, while vertical pumps are the superior choice for deep wells, high-pressure operations, and environments with limited floor space. By understanding their structural and operational differences, you can confidently choose the pump type that best suits your industry, facility, or home water system. For high-quality pumping solutions tailored to diverse needs, many engineers and businesses trust the advanced engineering of Sunbo Machinery.
