Vertical slurry pumps play an essential role in industries that handle abrasive, corrosive, or high-density slurries. If you want to understand what is slurry pumping, these pumps provide the perfect example—they move solids-laden fluids efficiently through systems where conventional pumps fail. From mining to wastewater treatment, vertical slurry pumps offer a durable and highly efficient solution in demanding environments. For anyone asking what are vertical slurry pumps, they are heavy-duty centrifugal pumps engineered to manage tough slurries while maintaining long-term reliability.
Whether you’re handling sand, gravel, chemicals, or industrial waste, understanding what is a vertical slurry pump—and how it works—can significantly improve operational stability. If your operations involve transporting dense or abrasive slurries, knowing how vertical slurry pumps function and where they perform best can help reduce downtime and boost system performance.
This comprehensive guide explains what a vertical slurry pump is, how it works, the key benefits it brings, and the industries that rely on it every day. You will also discover important considerations for selecting and maintaining the right pump for long-term efficiency and durability.

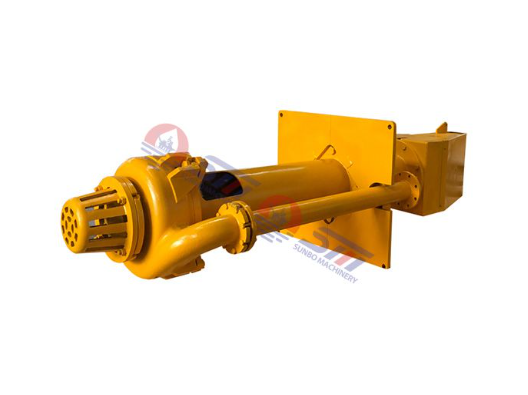

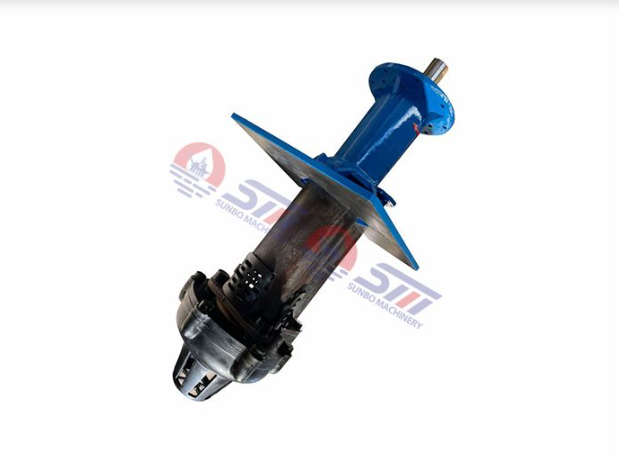

A vertical slurry pump is a type of centrifugal pump designed to operate with its hydraulic end submerged in a sump or pit while the motor and upper components remain above the liquid surface. This design makes it ideal for pumping abrasive or corrosive slurries from tanks, ponds, basins, and other submerged environments.
Unlike horizontal pumps that require dry installation, vertical slurry pumps handle fluids directly at the source. Their vertical orientation also protects the motor from slurry contact and allows the pump to operate even when the fluid level fluctuates.
Vertical installation with a submerged wet end
Ability to handle abrasive, high-viscosity, or high-density slurries
Open impeller designs that reduce clogging
Heavy-duty materials like rubber, high-chrome alloys, or stainless steel
Long shaft connecting the motor to the impeller
Vertical slurry pumps are commonly used when fluid levels vary or when space is limited. Because only the pump end is submerged, maintenance becomes easier while still allowing efficient extraction of solids-laden fluids.
Vertical slurry pumps follow the principles of centrifugal pumping. Their structure and mechanics allow them to lift slurry vertically while handling high wear conditions.
The pumping process begins when the motor drives the shaft, causing the impeller to rotate at high speed. As the impeller spins, it pushes the slurry outward through centrifugal force, creating a low-pressure zone at the center. This pressure difference draws more slurry into the pump from the sump.
The slurry then moves through the pump casing and exits through the discharge pipe. The continuous rotation of the impeller maintains a steady flow, even when the slurry contains large or abrasive particles.
Vertical slurry pumps rely on several essential components to ensure stable operation:
The impeller is the heart of the pump. Typically made of high-chrome metal or elastomer, it resists abrasion and moves slurry efficiently. Open and semi-open designs help prevent clogging.
The casing houses the impeller and directs slurry flow toward the discharge. It absorbs impact from abrasive particles, making material selection critical.
A long vertical shaft connects the motor to the impeller. Since only the lower end is submerged, the shaft must be rigid and corrosion-resistant.
Bearings support the shaft and maintain alignment. Vertical slurry pumps often use heavy-duty bearing assemblies to handle radial and axial loads.
Located at the inlet, the strainer prevents oversized solids from entering the pump and damaging internal components.
These components keep the pump stable and support the submerged section while allowing slurry to flow upward through the discharge channel.
Vertical slurry pumps offer several performance advantages compared to horizontal pumps, especially in harsh environments.
Since the pump head is submerged, vertical slurry pumps operate directly in the slurry source. This eliminates the need for priming and reduces the risk of air locking.
The vertical design saves floor space, making it ideal for compact plants or areas with limited installation room.
The motor stays above the fluid, reducing exposure to corrosion, mud, and chemical elements. This extends motor life and simplifies maintenance.
Vertical slurry pumps can manage slurries containing coarse particles or sediments. Their open impeller design and strong hydraulics make them ideal for abrasive materials.
Using high-wear-resistant materials such as rubber linings or chromium alloy significantly prolongs service life, even in extreme applications.
These pumps continue operating even when liquid levels drop or fluctuate, giving operators better flexibility and reliability.
Vertical slurry pumps are indispensable across a wide range of industries. Their ability to handle abrasive and corrosive slurries makes them a reliable choice for heavy-duty operations.
Handling tailings
Pumping ore slurries
Transferring thickened or abrasive materials
Their ability to operate in pits and underground chambers makes them essential in mining plants.
Vertical slurry pumps move sand, gravel slurries, and dredging materials efficiently.
These pumps transport slag slurries, scrubber waste, furnace dust wash, and other high-temperature or corrosive by-products.
They handle corrosive slurries containing chemicals, acids, or reactive substances.
Commonly used for:
Bottom ash handling
Fly ash slurry transfer
Scrubber slurries
Vertical slurry pumps manage sludge, thickened biosolids, and industrial waste sediments.
They assist in dewatering slurry pits, removing mud water, and supporting underground boring operations.
Used to move clay slurries, ceramic slip, and abrasive mixtures.
Choosing the right vertical slurry pump ensures optimal performance and long equipment life. You should evaluate the following factors before making a purchase.
Identify:
Particle size
Abrasiveness
pH level
Density
Viscosity
Different slurries require specific materials and impeller designs.
For high abrasion: high-chrome alloy
For corrosive slurries: rubber or stainless steel
For mixed conditions: elastomer-metal combinations
The right material reduces wear and maintenance costs.
Choose the correct hydraulic configuration to ensure the pump meets the system’s total dynamic head (TDH) and flow demand.
Ensure the pump shaft is long enough to fully immerse the wet end without submerging the motor.
Look for features like:
Replaceable liners
Easy-access casing
Modular designs
Simplified maintenance increases uptime.
Evaluate motor efficiency, impeller design, and system resistance to minimize power consumption.
Choose brands with a proven track record in slurry pumping systems. Trusted manufacturers like Sunbo Machinery offer long-lasting designs, quality control, and technical support.
A vertical slurry pump has a submerged wet end and operates in pits or sumps, while a horizontal slurry pump is installed on dry ground and requires priming. Vertical pumps handle fluctuating liquid levels better.
Yes. Most vertical slurry pumps feature open or semi-open impellers that handle coarse, abrasive particles without clogging.
No. Since the wet end is submerged, the pump remains primed naturally.
Lifespan depends on slurry abrasiveness, material selection, and maintenance frequency. Properly maintained pumps made from high-chrome or rubber-lined materials can last many years.
Mining, metallurgy, wastewater treatment, power generation, sand processing, and chemical industries use these pumps extensively.
When matched correctly to system requirements, they provide strong hydraulic performance and stable flow with efficient energy consumption.
