Handling abrasive and high-density slurries is one of the biggest challenges in industrial fluid transportation. Conventional pumps often struggle with solids, leading to frequent blockages, wear, and downtime. This is where a submersible slurry pump becomes essential.
A submersible slurry pump is specifically designed to transport liquids containing sand, mud, sludge, ore particles, and other suspended solids. Because the pump and motor operate underwater, it delivers reliable performance in demanding environments where traditional pumps may fail.
This comprehensive guide explains how submersible slurry pumps work, their key components, major industrial applications, selection considerations, and the benefits they offer.

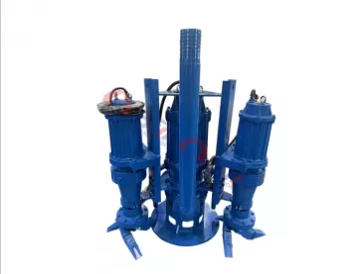

A submersible slurry pump is a heavy-duty centrifugal pump in which the motor and pump are integrated into a single unit and submerged directly into the fluid being pumped. Unlike dry-installed pumps, submersible slurry pumps operate below the liquid level, eliminating the need for suction piping and reducing the risk of cavitation.
These pumps are engineered to handle:
Slurries with high solid concentrations
Abrasive materials such as sand and gravel
Corrosive or chemically aggressive media
High-density mixtures containing sediment and particles
Due to their robust construction and high wear resistance, submersible slurry pumps are widely used in mining, dredging, construction, and wastewater treatment applications.
The impeller is the heart of the slurry pump. It rotates at high speed to generate centrifugal force, transferring energy to the slurry and moving it through the system.
For slurry applications, impellers are typically made from high-chromium alloy or wear-resistant materials to withstand abrasion caused by solid particles.
The volute surrounds the impeller and converts kinetic energy into pressure energy. It guides the slurry smoothly toward the discharge outlet while minimizing turbulence and energy loss.
A well-designed volute improves pump efficiency and extends service life.
The submersible motor provides the power needed to drive the impeller. Since it operates underwater, the motor is fully sealed and specially designed to resist moisture, dust, and harsh operating conditions.
Depending on the application, motors can be selected with different power ratings to meet varying flow and head requirements.
The mechanical seal prevents slurry and water from entering the motor chamber. Because abrasive particles can quickly damage internal components, high-quality sealing systems are essential for ensuring long-term reliability.
Advanced submersible slurry pumps often use double mechanical seals and oil chambers for enhanced protection.
The discharge pipe transports the pumped slurry from the pump outlet to the desired location. Proper pipe sizing and material selection help minimize friction losses and improve overall pumping efficiency.
Mining operations generate large volumes of abrasive slurries containing ore, tailings, and mineral particles. Submersible slurry pumps are widely used for:
Mine dewatering
Tailings transportation
Sump drainage
Ore slurry handling
Underground water removal
Their ability to handle high-solid content makes them indispensable in modern mining operations.
Construction sites frequently encounter muddy water and sediment accumulation. Submersible slurry pumps help remove:
Excavation water
Foundation pit water
Drilling mud
Sand-laden wastewater
Their portability and easy installation make them ideal for temporary construction applications.
Municipal and industrial wastewater treatment facilities often need to transfer sludge and sediment-rich liquids. Submersible slurry pumps are commonly used for:
Sludge transfer
Sediment removal
Grit pumping
Lagoon cleaning
Industrial wastewater management
Their submerged operation reduces noise and simplifies installation.
Sand and aggregate industries require pumps capable of handling highly abrasive materials. Submersible slurry pumps are widely applied in:
Sand extraction
Gravel transportation
Aggregate washing systems
Sediment removal
Their wear-resistant components provide reliable performance even under severe operating conditions.
Dredging projects involve the transportation of large quantities of sand, silt, and sediment from rivers, lakes, ports, and reservoirs.
Submersible slurry pumps are suitable for:
River dredging
Harbor maintenance
Reservoir cleaning
Pond desilting
Beach replenishment projects
Their underwater operation significantly improves pumping efficiency and reduces installation complexity.
Selecting the appropriate slurry pump requires careful evaluation of the operating conditions.
Different slurries vary in:
Particle size
Solid concentration
Density
Chemical properties
Abrasiveness
Understanding slurry characteristics helps determine the appropriate pump materials and design.
Pump capacity refers to the required flow rate, usually measured in cubic meters per hour (m³/h).
Selecting insufficient flow capacity can reduce productivity, while oversized pumps may increase energy consumption.
Head represents the vertical lifting distance and resistance the pump must overcome.
The required head depends on:
Pumping height
Pipe length
Friction losses
Discharge pressure requirements
Proper head calculations ensure stable and efficient operation.
Material selection directly affects pump lifespan.
Common materials include:
High-chromium alloy
Wear-resistant cast iron
Stainless steel
Corrosion-resistant alloys
Highly abrasive applications generally require pumps with reinforced wear-resistant components.
Motor power should match both flow and head requirements.
An undersized motor may overload and fail prematurely, while an oversized motor can unnecessarily increase operating costs.
Pump efficiency determines energy consumption and operating expenses.
High-efficiency submersible slurry pumps can:
Lower electricity costs
Reduce maintenance frequency
Improve productivity
Extend equipment service life
Considering lifecycle costs rather than initial purchase price often results in better long-term value.
Submersible slurry pumps are specifically designed to withstand highly abrasive environments. Their reinforced construction and wear-resistant materials provide excellent durability and long service life.
Because the pump operates directly in the liquid, suction losses are minimized and pumping efficiency is significantly improved.
Submersible pumps do not require complex suction piping or pump houses. They can be installed directly into sumps, pits, ponds, or tanks, reducing installation costs and saving space.
Since the motor and pump operate underwater, noise and vibration levels are substantially lower than those of surface-mounted pumps.
Submersible slurry pumps remain submerged during operation and therefore do not require manual priming, simplifying startup procedures and improving reliability.
These pumps can handle a wide range of applications involving:
Sand
Mud
Sludge
Tailings
Sediment
Industrial wastewater
Abrasive slurries
Their versatility makes them suitable for numerous industries.
The compact integrated design reduces the number of external components and minimizes maintenance requirements.
Many modern pumps also incorporate protective systems such as thermal sensors, moisture detection, and advanced sealing technologies for improved reliability.
Submersible slurry pumps eliminate many risks associated with dry-installed pumps, including suction failures and exposed rotating components. Their enclosed operation also reduces environmental contamination and improves workplace safety.
Submersible slurry pumps are indispensable equipment for industries that handle abrasive, high-solid-content fluids. Their submerged design, high wear resistance, and reliable performance make them ideal for mining, construction, wastewater treatment, sand processing, and dredging operations.
Choosing the right submersible slurry pump requires evaluating slurry characteristics, flow capacity, head requirements, materials, motor power, and efficiency. By selecting a properly engineered pump, businesses can achieve higher productivity, lower maintenance costs, and longer equipment life.
As industrial processes continue to demand more reliable slurry handling solutions, submersible slurry pumps remain one of the most efficient and cost-effective choices for transporting challenging fluids in harsh environments.
