In industries where abrasive, high-density, or corrosive mixtures must be transported reliably, standard pumps often fall short. This is where Warman centrifugal slurry pumps stand out. Known globally for durability, performance, and engineering excellence, Warman pumps have become an industry benchmark in slurry handling applications.
Slurry pumps play a critical role in sectors such as mining, mineral processing, power generation, dredging, sand and gravel, and chemical processing. Among them, Warman centrifugal slurry pumps are widely recognized for their ability to handle harsh operating conditions while maintaining efficiency and long service life.
This guide is designed to give you a complete, practical understanding of Warman centrifugal slurry pumps—how they work, their key features, benefits, maintenance tips, and how to choose the right model for your application. Whether you are an engineer, procurement manager, or plant operator, this article will help you make informed decisions and drive value to your pump selection process.
Warman centrifugal slurry pumps are purpose-built machines. Unlike general-purpose centrifugal pumps, they are engineered to handle solids-laden fluids with minimal wear and maximum reliability.

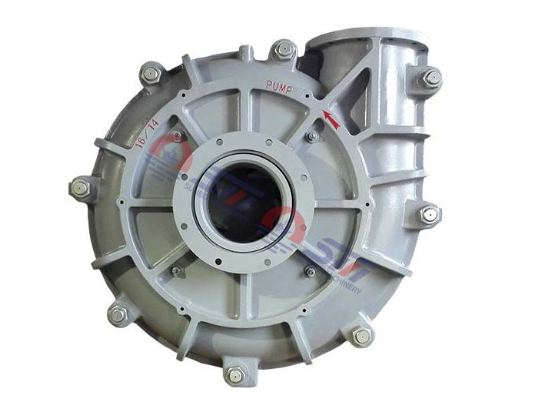

The pump casing is typically constructed from high-chrome alloy, rubber-lined materials, or other wear-resistant compounds. These materials protect the pump from erosion and abrasion caused by solid particles.
Metal-lined casings are ideal for sharp, coarse particles.
Rubber-lined casings perform better with fine particles and corrosive slurries.
The split-casing design also allows for easier maintenance and reduced downtime.
The impeller is the heart of a centrifugal slurry pump. Warman impellers are designed with thicker vanes and optimized profiles to reduce turbulence and wear.
Key impeller types include:
Closed impellers for high-efficiency slurry transport
Semi-open impellers for applications with larger solids
Expeller designs to reduce seal pressure
Advanced hydraulic design ensures consistent flow while minimizing energy consumption.
Warman pumps feature oversized shafts and heavy-duty bearing assemblies. This design reduces deflection, improves stability, and extends bearing life even under continuous heavy loads.
The bearing housing is often oil-lubricated or grease-lubricated, depending on application requirements.
To suit different operating environments, Warman centrifugal slurry pumps offer multiple sealing solutions:
Packing seals for cost-effective, easy maintenance
Mechanical seals for reduced leakage
Expeller seals for high-pressure, seal-water-free operation
This flexibility allows operators to match sealing methods to process conditions.

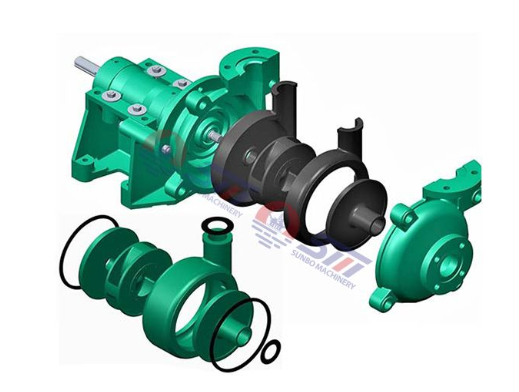

One of the most practical features of Warman pumps is their modular construction. Many components are interchangeable across models, simplifying spare parts management and reducing inventory costs.
Choosing the right slurry pump impacts not only process efficiency but also long-term operating costs. Warman centrifugal slurry pumps deliver several key advantages.
Warman pumps are engineered specifically to handle abrasive slurries. Their advanced materials and hydraulic designs significantly reduce wear rates, extending component life even in demanding applications such as ore grinding circuits or tailings transport.
From high solids concentration to fluctuating flow rates, Warman pumps are built to perform consistently. This reliability reduces unplanned downtime and improves overall plant productivity.
Optimized impeller and casing geometries reduce internal losses. As a result, Warman centrifugal slurry pumps deliver high efficiency over a wide operating range, helping lower energy consumption and operating costs.
Warman pumps are used across a wide range of industries, including:
Mining and mineral processing
Coal preparation plants
Power generation and flue gas desulfurization
Dredging and marine applications
Chemical and industrial processing
This versatility makes them a preferred choice for engineers worldwide.
Warman pumps are backed by decades of field-proven performance. Their widespread adoption means spare parts availability, technical support, and application knowledge are readily accessible.
Proper maintenance is essential to maximizing the lifespan and performance of any slurry pump. While Warman pumps are built for durability, routine care ensures optimal operation.
Establish a consistent inspection routine focusing on:
Impeller wear and clearance
Liner thickness and erosion patterns
Shaft alignment and vibration
Bearing temperature and lubrication condition
Early detection of wear helps prevent costly failures.
Maintaining proper impeller-to-liner clearance is critical. Excessive clearance reduces efficiency, while insufficient clearance accelerates wear. Warman pumps are designed with adjustable features to make this process straightforward.
Leakage around the shaft seal should be monitored closely. Excessive leakage may indicate worn packing, incorrect gland pressure, or seal damage. Addressing seal issues early prevents shaft and sleeve damage.
Bearings should be lubricated according to manufacturer recommendations. Over-lubrication can be just as harmful as under-lubrication. Regular oil analysis can provide early warning of contamination or wear.
Reduced flow rate: Check for worn impeller, blocked suction, or air ingress
Excessive vibration: Inspect bearings, shaft alignment, and foundation rigidity
High power consumption: Verify slurry density, impeller condition, and operating point
Systematic troubleshooting minimizes downtime and extends equipment life.
Selecting the correct slurry pump is not just about size or brand. It requires a thorough understanding of your process conditions.
Key parameters include:
Particle size distribution
Solids concentration
Slurry density
Abrasiveness and corrosiveness
These factors influence material selection and pump configuration.
Accurate data is essential:
Required flow rate
Total dynamic head
Suction conditions and NPSH availability
Operating hours and duty cycle
Choosing a pump that operates close to its best efficiency point improves performance and reduces wear.
Warman centrifugal slurry pumps offer multiple material options. Selecting the right combination of metal or rubber components significantly affects service life and maintenance frequency.
Space limitations, ease of maintenance, and spare parts availability should also influence pump selection. Horizontal and vertical Warman pump configurations provide flexibility for different plant layouts.
An experienced slurry pump supplier can help match your application with the most suitable Warman pump model, reducing trial-and-error costs and improving long-term reliability.
Warman centrifugal slurry pumps have earned their reputation as industry-leading solutions for abrasive and high-density slurry applications. Their robust construction, advanced hydraulic design, and proven reliability make them a trusted choice across mining, industrial, and processing industries worldwide.
By understanding their key features, benefits, maintenance requirements, and selection principles, you can ensure optimal pump performance, lower operating costs, and longer equipment life. For any operation where slurry handling is critical, investing in the right Warman centrifugal slurry pump is a decision that pays off over time.
A Warman pump is a type of heavy-duty slurry pump designed specifically to handle abrasive, high-density, and corrosive slurries. It is widely used in mining, mineral processing, and industrial applications where standard centrifugal pumps are not suitable.
Centrifugal slurry pumps are generally the best choice for slurry applications due to their ability to handle large volumes of solids-laden fluids efficiently. Warman centrifugal slurry pumps are among the most widely used because of their durability and proven performance.
A standard centrifugal pump is designed for clean or lightly contaminated liquids, while a slurry pump is engineered to handle fluids containing solid particles. Slurry pumps feature stronger materials, thicker components, and specialized hydraulic designs to resist wear and abrasion.
Warman pumps are manufactured by Weir Minerals, a global engineering company specializing in mining and industrial equipment. The Warman brand is recognized worldwide for its high-performance slurry pump solutions.
