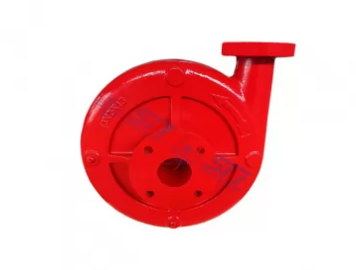

Mission Centrifugal Mud Pump

The Mission centrifugal mud pump is a type of pump specifically designed to handle mud, slurry, and other viscous or abrasive mixtures. These pumps are widely used in industries such as oil and gas, mining, construction, and wastewater treatment.

Working Principle of a Centrifugal Mud Pump

– Generation of Centrifugal Force

A centrifugal mud pump operates by utilizing centrifugal force as its core working principle. Inside the pump, an impeller rotates at high speed. Once the drilling mud enters through the suction inlet, it is captured by the rotating impeller. The impeller blades then accelerate the fluid outward from the center, forcing it to move radially due to the strong centrifugal action created by the rotation.

– Fluid Transport and Pressure Conversion

After being thrown to the outer edge of the impeller, the mud flows into the volute casing. This casing has a gradually expanding spiral structure, which plays a key role in energy conversion. As the flow area increases, the velocity of the mud is reduced, and its kinetic energy is effectively transformed into pressure energy. As a result, the mud gains higher pressure and is finally discharged smoothly through the outlet of the pump for downstream operation.

Mission centrifugal mud pump key components

– Impeller:

– The impeller is a critical component. It is usually made of wear – resistant materials such as high – chromium alloys or rubber – coated alloys. The design of the impeller, including the number and shape of the blades, affects the pump’s performance. For example, impellers with more blades may provide a smoother flow of mud, while those with a specific blade shape can better handle abrasive particles.
– The size of the impeller also determines the flow rate and head (pressure) capabilities of the pump. Larger impellers generally can handle higher flow rates and generate more pressure.

– Casing:

– The casing, typically made of cast iron, steel, or a combination of materials, provides structural support and contains the mud flow. It has a volute – shaped interior to direct the mud from the impeller to the discharge outlet and to convert kinetic energy to pressure energy.
– Some casings may have a wear – resistant lining, such as a rubber lining, to protect against abrasion caused by the mud and to extend the life of the pump.

– Shaft and Bearings:

– The shaft connects the impeller to the drive motor and transmits the rotational power. It needs to be strong and rigid enough to withstand the torque and the forces exerted by the mud on the impeller.
– Bearings are used to support the shaft and allow it to rotate smoothly. High – quality bearings are essential to reduce friction and ensure the long – term operation of the pump. They are often sealed to prevent mud from entering and causing damage.

– Seals:

– Mechanical seals or packing seals are used to prevent mud leakage from the pump. Mechanical seals are more effective in providing a tight seal and are commonly used in applications where leakage must be minimized. The seals are made of materials that can withstand the abrasive and corrosive nature of the mud.

Mission centrifugal mud pump

Applications

– Oil and Gas Drilling: In drilling operations, the Mission centrifugal mud pump is used to circulate drilling mud. The mud serves multiple purposes, including cooling the drill bit, carrying the drilled cuttings to the surface, and maintaining the pressure in the wellbore. The pump’s ability to handle the abrasive cuttings and the viscous mud is crucial for the success of the drilling process.
– Mining: In mining, it is used to transport slurry containing ore particles from the mining site to the processing plant. The pump can handle the abrasive nature of the ore – laden slurry and ensure efficient transportation over long distances.
– Wastewater Treatment: In wastewater treatment plants, the pump can be used to handle sludge and other muddy waste. It helps in the transportation of these materials for further treatment or disposal.
– Construction: In construction sites, it can be used to de – water excavated areas or to transport concrete – like mixtures. For example, in tunneling projects, it can handle the muck and transport it out of the tunnel.
