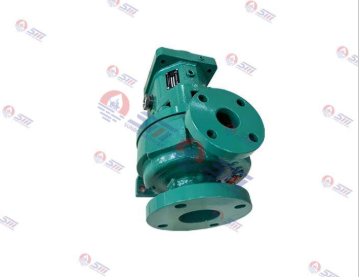

Selecting the right ASME B73.1 chemical process pump is not simply a matter of matching the required flow rate and head. Chemical process applications often involve corrosive liquids, varying temperatures, solids, hazardous fluids, and continuous operation. A pump that looks suitable on a datasheet may still suffer from corrosion, cavitation, seal failure, excessive vibration, or high energy consumption if the actual operating conditions are not considered.
ASME B73.1 applies to horizontal, end-suction, single-stage centrifugal process pumps and establishes standardized dimensions and design requirements. One major advantage is dimensional interchangeability, which can simplify pump replacement, installation, and maintenance.
When selecting an ASME B73.1 pump, engineers and purchasing teams should evaluate the following factors.
Start with the hydraulic duty point.
The two most important parameters are:
Flow rate: how much liquid must be transferred per unit of time
Total Dynamic Head (TDH): the total pressure the pump must overcome
TDH should consider static elevation, pipeline friction losses, fittings, valves, filters, heat exchangers, and other system resistance.
Avoid selecting a pump only according to the maximum required flow. The pump should normally operate close to its Best Efficiency Point (BEP) during normal production.
Operating too far from the preferred operating range may increase vibration, hydraulic instability, bearing loads, seal wear, and energy consumption.
For applications with changing production requirements, provide both normal and maximum operating conditions to the pump manufacturer.
The liquid itself has a major influence on pump selection.
Before requesting a quotation, provide as much fluid information as possible, including:
Chemical composition
Concentration
Specific gravity
Viscosity
Operating temperature
pH
Vapor pressure
Presence of solids
Particle size and concentration
For example, pumping clean water is very different from handling sulfuric acid, sodium hydroxide, solvents, wastewater, or chemical slurry.
Higher viscosity can reduce centrifugal pump performance, while higher specific gravity increases the power required from the motor. Fluids containing suspended solids may also require an appropriate impeller design and larger internal passages.
The more complete the fluid data, the more accurately the chemical process pump can be selected.
Material compatibility is one of the most important considerations for chemical pump applications.
The casing, impeller, shaft sleeve, seal components, and other wetted parts must resist the pumped chemical.
Common material options may include:
| Material | Typical Consideration |
|---|---|
| Cast Iron | General non-corrosive services |
| Carbon Steel | Industrial process applications |
| 304 Stainless Steel | Mildly corrosive liquids |
| 316 Stainless Steel | Broader chemical resistance |
| Duplex Stainless Steel | Chloride-containing and demanding environments |
| High-Alloy Materials | Severe corrosive chemical applications |
Material selection should not be based only on the chemical name. Concentration and temperature can significantly change corrosion behavior.
For example, a material that performs well with a diluted chemical at room temperature may not provide the same service life at higher concentrations or temperatures.
When corrosion resistance is critical, provide the exact chemical composition and operating temperature to the pump supplier before confirming the material.
Even a correctly sized pump can fail if insufficient suction pressure is available.
Two values should be evaluated:
NPSHA – Net Positive Suction Head Available
This is determined by the actual pumping system.
NPSHR – Net Positive Suction Head Required
This is determined by the pump design and operating point.
The system should provide sufficient margin between NPSHA and NPSHR.
Poor suction conditions can cause cavitation, which may lead to:
Noise
Vibration
Impeller erosion
Reduced capacity
Mechanical seal damage
Bearing problems
Shorter pump life
Suction piping design is therefore just as important as pump selection.
Long suction lines, undersized pipes, excessive fittings, high liquid temperatures, clogged strainers, or low tank levels can all reduce available suction head.
Mechanical seals are often one of the most critical components in an ASME B73.1 chemical process pump.
Seal selection depends on the characteristics of the process fluid and operating environment.
Important considerations include:
Fluid toxicity
Corrosiveness
Lubricating properties
Crystallization tendency
Solids content
Operating pressure
Temperature
Environmental requirements
For relatively clean and stable liquids, a conventional single mechanical seal may be suitable.
For hazardous, volatile, toxic, or difficult-to-lubricate chemicals, more advanced sealing arrangements may be required.
Do not treat the mechanical seal as a standard accessory. A correctly selected pump with an unsuitable seal system may still experience frequent leakage and shutdowns.
Standard chemical process pumps are commonly used for clean liquids and liquids containing limited suspended solids, but not every ASME B73.1 pump is suitable for severe slurry service.
If the fluid contains solids, specify:
Solid concentration
Maximum particle size
Particle hardness
Particle shape
Whether solids settle easily
The manufacturer can then determine whether an open, semi-open, or other suitable impeller configuration should be used.
If the application contains high concentrations of highly abrasive particles, a dedicated slurry pump may sometimes be more suitable than a conventional chemical process pump.
The decision should be based on actual fluid characteristics rather than selecting a pump category by name.
Chemical plants frequently operate under elevated temperature and pressure conditions.
Higher temperatures can affect:
Material corrosion rate
Mechanical seal selection
Elastomer compatibility
Bearing lubrication
Thermal expansion
Vapor pressure and NPSH
Maximum allowable working pressure should also be checked against the highest possible system pressure—not only the normal operating pressure.
Always provide both normal and maximum operating temperature and pressure when requesting pump selection.
Selecting the correct pump does not end with hydraulic performance.
The motor must provide sufficient power for the complete expected operating range. Specific gravity, viscosity, impeller diameter, and maximum flow conditions all influence power demand.
However, simply installing an oversized motor and pump is not necessarily safer.
An oversized pump may result in throttling, unnecessary energy consumption, vibration, and increased maintenance costs.
For continuously operated process pumps, selecting a pump that performs efficiently near the normal duty point can significantly reduce total operating costs over the equipment's service life.
Chemical process plants often operate continuously, so downtime can cost much more than the initial pump purchase price.
Before selecting a supplier, consider:
Ease of impeller adjustment
Bearing maintenance
Mechanical seal replacement
Availability of spare parts
Interchangeability
Technical documentation
Replacement lead time
One purpose of the ASME B73.1 dimensional requirements is to improve interchangeability between pumps of the same standard dimensional designation, covering areas such as mounting dimensions, nozzle locations, shafts, baseplates, and foundation bolt holes.
This can be particularly valuable when replacing existing ANSI process pumps in established plants.
The fastest way to obtain an accurate pump recommendation is to provide the manufacturer with complete operating data.
A typical inquiry should include:
Fluid:
Chemical name and concentration
Flow:
Normal and maximum capacity
Head:
Required total dynamic head
Temperature:
Normal and maximum temperature
Specific Gravity:
At operating temperature
Viscosity:
If significantly different from water
Solids:
Concentration and particle size
NPSHA:
If available
Materials:
Existing or required wetted materials
Seal:
Preferred mechanical seal arrangement
Motor:
Voltage, frequency, power, and hazardous-area requirements
ASME also provides a B73 pump datasheet intended to help users communicate pump performance and technical requirements during equipment specification and purchasing.
Before placing an order, confirm these seven points:
Is the required flow and head clearly defined?
Is the selected pump operating reasonably close to its BEP?
Are all wetted materials compatible with the chemical?
Is sufficient NPSH available?
Is the mechanical seal suitable for the fluid?
Can the pump handle the expected solids, temperature, and pressure?
Are replacement parts and technical support readily available?
If these questions are properly addressed, the risk of premature pump failure can be significantly reduced.
Pump performance depends not only on the model selected but also on manufacturing quality and technical support.
A capable ASME B73.1 pump manufacturer should be able to review your operating conditions, recommend suitable materials, select the hydraulic size, configure the sealing system, and provide spare parts for long-term maintenance.
Sunbo Machinery manufactures slurry pumps, Mission-type pumps, and ANSI process pumps for applications including chemical processing, petroleum, wastewater, mining, and other industrial services. Its ASME B73.1 pump range includes options designed for chemical process applications and replacement requirements.
If you are selecting a new ASME B73.1 chemical process pump or replacing an existing ANSI pump, send us your flow rate, head, fluid composition, temperature, specific gravity, and material requirements. Our technical team can help determine a suitable pump configuration for your operating conditions.
