How to Calculate Discharge Head on an Industrial Pump?

Accurately calculating the discharge head on an industrial pump is crucial for ensuring that the pump operates effectively in its intended application. This calculation helps determine the appropriate pump size and power, which in turn affects the efficiency and performance of the system. When selecting or purchasing a pump, understanding the discharge head is essential. The following guide explains how to calculate discharge head for industrial pumps.

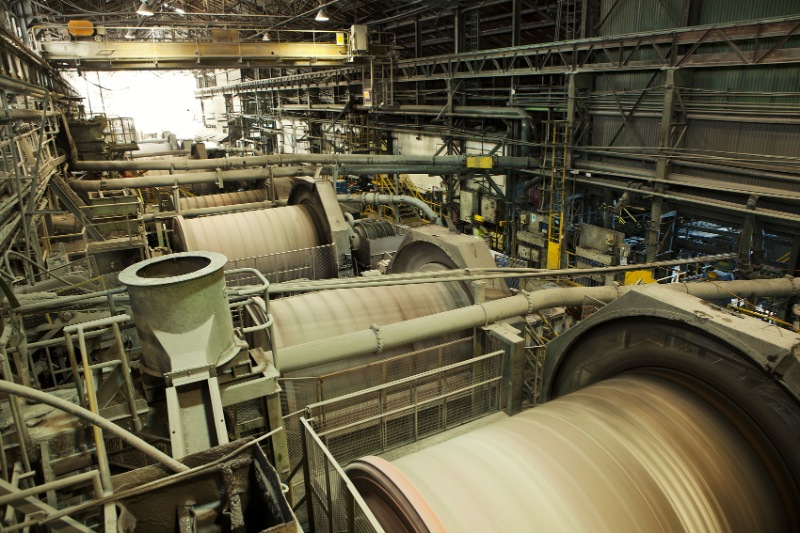

Ball Mill Recirculation Pump

Why is it Important to “Accurately” Calculate Discharge Head on an Industrial Pump?

Discharge head refers to the vertical distance that the pump needs to push the fluid in order to reach the highest point in the system. This is a key factor in determining the pump’s size and power. Incorrectly sizing a pump can have serious consequences for both production and profitability:

• Oversizing: An oversized pump delivers more flow than necessary. While other components like flow-reducing devices or impeller trimming can compensate for this, excess energy must be released elsewhere, leading to increased heat, vibrations, and “hammering,” which reduce both pump life and efficiency.

• Undersizing: An undersized pump results in lower flow rates and reduced pressure. This could require system modifications or replacing the pump with a larger one, both of which increase operating costs. Additionally, insufficient energy might require more power, which can lead to inefficiencies similar to those caused by an oversized pump.




Factors to Consider When Calculating Discharge Head for an Industrial Pump

Accurate discharge head calculation requires considering multiple factors. It's more than just measuring vertical height; dynamic head (the sum of head losses in the system) must also be factored in. Below are key elements that influence the calculation:

1. Fluid Considerations

The properties of the fluid being pumped are fundamental to the calculation:

• Flow Rate: Determine the required flow rate for your application.

• Viscosity: This is the fluid's internal friction. A more viscous fluid is thicker and stickier, affecting how the pump operates.

• Specific Gravity: This is the density or weight of the fluid relative to water.

• Temperature: Fluid properties change with temperature, which also impacts energy discharge.

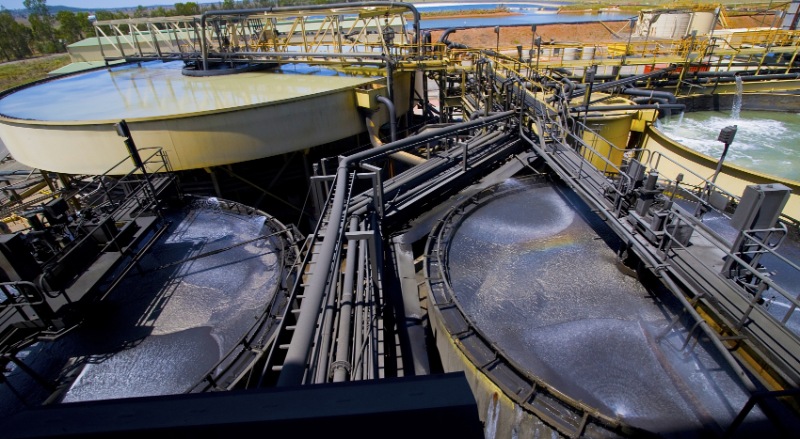

Mining Minerals Handling Pump

2. Inlet Piping

Inlet piping significantly affects dynamic head:

• Inlet Pipe Size: The size of the inlet pipe directly affects the suction load on the pump.

• Vertical Distance: This refers to the height from the fluid surface to the pump’s centerline. The relative position of the pump (higher or lower than the fluid surface) is crucial.

• Pipe Length: Longer pipes increase friction, causing flow and pressure losses.

• Fittings: The number and type of fittings influence the dynamic head. For accurate calculation, include a list of the following types and quantities:

• Elbows

• Tee (Running and Branched)

• Swing Check Valve

• Globe Valve

• Butterfly Valve




3. Pressure Required at Discharge Point

The discharge side of the system also impacts the head:

• Discharge Pipe Size: The size of the discharge pipe compared to the inlet size affects pumping requirements.

• Vertical Distance: Similar to the inlet side, you’ll need to calculate the height from the pump’s centerline to the discharge fluid surface.

• Pipe Length and Construction: Consider both the length and material of the discharge pipes.

• Fittings: As with the inlet side, the types and quantities of fittings used in the discharge system affect head loss.




4. Total Friction Head

Friction losses in the system must be considered when calculating discharge head. A starting point involves knowing the pressure required at the discharge point in psig. You can convert this pressure to feet of head using the following formula:

$$\text{Pressure (psig)} \times 2.31 = \text{Feet of Head}$$

This is only a starting point, as additional system parameters also affect the final calculation.

5. Total Elevation Head

Elevation head (or static head) represents the potential energy of the fluid due to its height above a reference point, often resulting from gravity or confinement. To calculate elevation head, use the formula:

$$\text{Elevation Head} = \text{Discharge Height} - \text{Pump Height}$$

6. Total Head Required at Discharge

Once all the factors are considered, you can calculate the total head required at discharge using the formula:

$$\text{Total Head} = \text{Elevation Head} + \text{Friction Loss} + \text{Discharge Pressure}$$

7. Net Positive Suction Head (NPSH)

To calculate discharge head accurately, it’s essential to factor in both the Net Positive Suction Head Available (NPSHa) and the Net Positive Suction Head Required (NPSHr). For optimal pump performance, the NPSHa must be greater than the NPSHr.

Calculating the discharge head of an industrial pump is a critical task that involves considering various factors, such as fluid properties, piping configurations, pressure requirements, and the friction losses in the system. Properly calculating discharge head ensures that the pump will operate efficiently, prolong its lifespan, and avoid unnecessary operational costs.
