Slurry pumps are crucial in industries that deal with abrasive, thick, and viscous materials, such as mining, construction, and wastewater treatment. These pumps help transport slurries—mixtures of liquids and solid particles—safely and efficiently. However, when choosing a slurry pump, industry professionals often face the decision between horizontal slurry pumps and submersible slurry pumps. Understanding the differences, benefits, and limitations of each type will help you make the right choice for your operations. This guide will delve into the features of horizontal and submersible slurry pumps and help you decide which one best suits your needs.

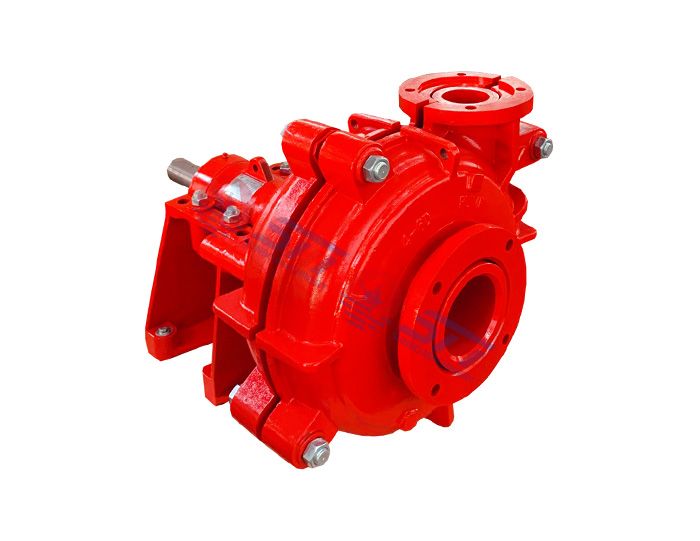

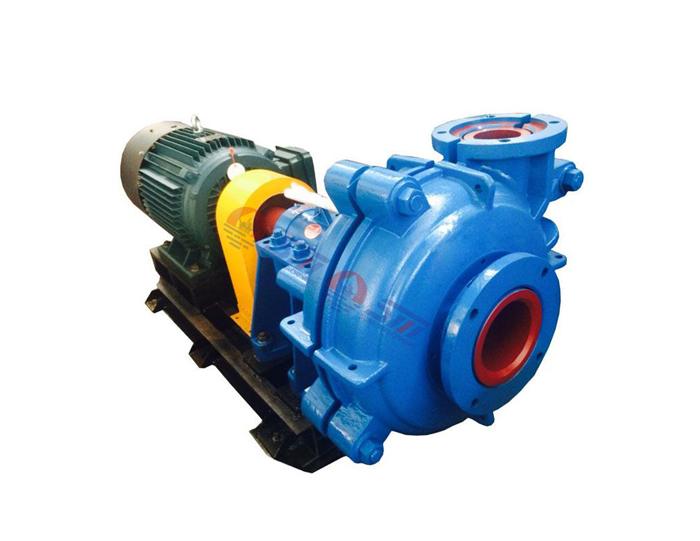

Horizontal slurry pumps are designed with the pump's axis placed horizontally, meaning the pump body and shaft are arranged in a horizontal orientation. These pumps are ideal for transporting high-viscosity slurries and solids in a wide range of industries. They typically consist of a pump casing, impeller, shaft, and a motor that drives the impeller to create the necessary pressure and flow for slurry transportation.
Horizontal slurry pumps are commonly used for heavy-duty applications where the slurry contains solid particles, such as in mining, dredging, and construction. The design of horizontal pumps makes them highly adaptable and allows for easy maintenance and repair. They are installed above the slurry source, and the slurry is pumped from the inlet, moving through the pump casing and eventually to the discharge point.

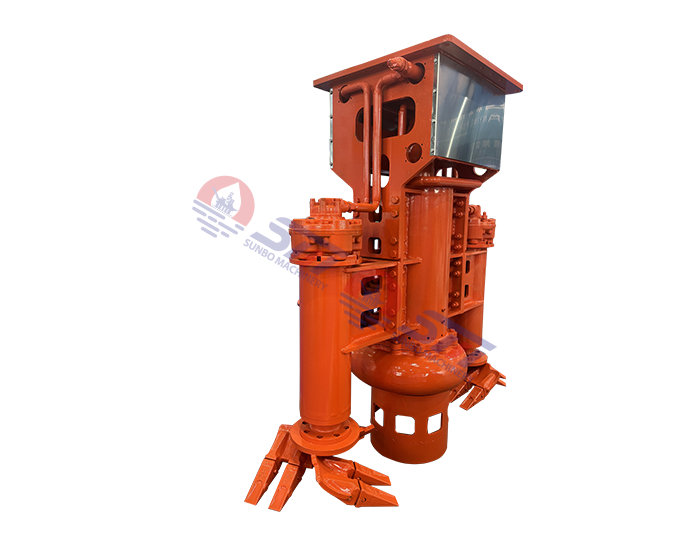

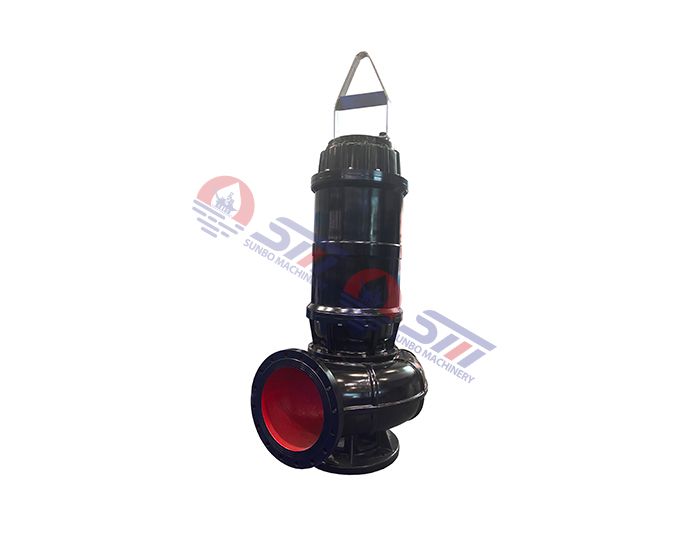

Submersible slurry pumps are designed to be fully submerged in the slurry or liquid they are pumping. These pumps are usually compact, self-priming units with a motor and impeller housed within the pump casing. They are submerged directly into the slurry and function by moving the liquid and solids upward through the pump. Submersible slurry pumps are commonly used in pits, sumps, and slurry ponds where the pump needs to be placed directly in the liquid or slurry.
Because they are submersible, these pumps are often used in dewatering applications, where the pump needs to remove water or slurry from below the surface. They are typically more efficient at handling wet applications and are capable of managing slurries with a wide range of viscosities, including those with high solid concentrations.
While both types of pumps are designed for handling abrasive materials, the choice between a horizontal and a submersible slurry pump depends on several factors. Let’s take a closer look at the key differences between them:
Horizontal slurry pumps are installed above ground and require piping and other infrastructure to connect the pump to the slurry source. This makes them more suitable for applications where the slurry is located in a centralized area, and the pump does not need to be immersed in the liquid. These pumps are ideal for large-scale operations where slurry needs to be transported over long distances or through complex piping networks.
In contrast, submersible slurry pumps are designed to be submerged directly in the slurry. They do not require extensive infrastructure since they can be placed directly in the slurry or liquid source. Submersible pumps are ideal for applications where the slurry needs to be pumped from below the surface, such as in **pits**, **mining operations**, or **dredging**.
Horizontal slurry pumps, being installed above the slurry, often experience higher energy consumption due to the need for additional piping, priming mechanisms, and gravity assistance. As the pump needs to generate enough pressure to move the slurry from one place to another, energy efficiency can vary depending on the system design. However, horizontal pumps are highly efficient for long-distance slurry transfer and can handle high-capacity operations.
Submersible slurry pumps, on the other hand, are more energy-efficient in wet applications because they don’t require the extra infrastructure needed for horizontal pumps. Since they are submerged in the slurry, they don’t rely on gravity to move the liquid, and their motors are optimized for submerged operations, leading to more efficient pumping in confined spaces. Submersible pumps are also less prone to issues related to cavitation or air locks, which can negatively impact the performance of horizontal pumps.
Horizontal slurry pumps are relatively easier to maintain because they are positioned above the slurry source. The pump components are accessible for inspection, cleaning, and replacement, which reduces downtime and simplifies maintenance tasks. If something goes wrong, horizontal pumps can typically be serviced without having to remove them from the slurry or liquid source.
In comparison, submersible slurry pumps can be more challenging to maintain. Since they are submerged, regular maintenance might require removing the pump from the slurry. However, modern designs have made submersible slurry pumps easier to service, with many pumps offering quick access to their components and incorporating self-cleaning and self-lubricating features to reduce maintenance efforts.
Horizontal slurry pumps are typically more durable in applications that require long-distance pumping of slurries with high concentrations of solids. They are often built with heavy-duty materials, such as high-chrome alloys or rubber linings, to resist wear and abrasion from the slurry. Horizontal pumps can last for years in demanding environments if properly maintained.
Submersible slurry pumps, while generally robust, may have a shorter lifespan in certain conditions due to the high wear caused by prolonged submersion in abrasive slurries. The wear and tear on the seals and motor housing are more significant in submersible units. However, their compact design and efficient operation make them ideal for certain applications, particularly when space and water-level variation are factors to consider.
Choosing between a horizontal slurry pump and a submersible slurry pump depends largely on the specifics of your application. Here’s a summary to help guide your decision:
Your operation requires long-distance slurry transport.
You need a pump for applications where the slurry is situated in a **centralized** location above ground.
Easy maintenance and accessibility are a priority.
There is ample space for pump installation and associated infrastructure.
Your operation involves **wet applications**, such as dewatering, or requires pumping from below the surface.
Space is limited or confined, and the pump needs to be submersible in the slurry.
Energy efficiency is a key concern, especially in applications with fluctuating slurry levels.
Your slurry system needs to be installed in hard-to-reach or submerged areas.
Yes, horizontal slurry pumps are well-suited for high-viscosity slurries, especially when they are designed with appropriate materials and impeller configurations. They are commonly used in mining and construction operations where slurries with large solid concentrations need to be moved over long distances.
Submersible slurry pumps are designed for deep applications, with some models capable of operating at depths of up to 50 meters or more. However, the maximum depth depends on the specific pump model and the motor’s power. It's important to choose a pump that matches the depth and conditions of your application.
Submersible slurry pumps are generally more efficient for wet applications since they do not require additional piping or infrastructure. However, horizontal slurry pumps can be more efficient in **long-distance slurry transport** or situations where above-ground installation is more practical.
Both horizontal and submersible slurry pumps have their strengths and limitations. Horizontal pumps excel in applications where long-distance slurry transport and easy maintenance are priorities, while submersible pumps are more efficient and space-saving in submerged or confined applications. By understanding the needs of your specific operation, you can make an informed decision on which pump will provide the best performance, reliability, and cost-effectiveness for your slurry-handling requirements.
