Horizontal slurry pumps are essential equipment in industries that handle abrasive and high-density fluids. These pumps are specifically designed to move slurry—a mixture of liquid and solid particles—efficiently, reliably, and safely. From mining operations to chemical processing, Horizontal Slurry Pumps have become indispensable for industries requiring high-performance fluid handling solutions.
In this comprehensive guide, we will explore the fundamentals of Horizontal Slurry Pumps, their types, applications, maintenance practices, and tips to optimize performance. By the end, you will have a solid understanding of how these pumps operate and how to select the right one for your industrial needs.

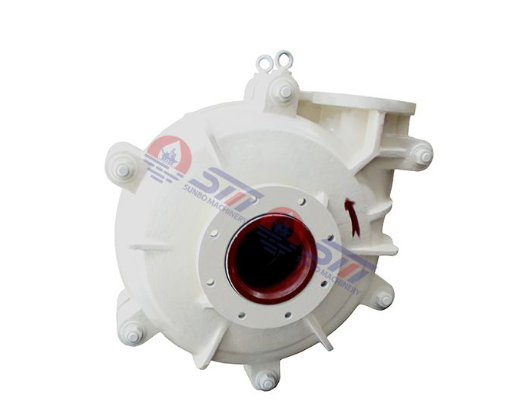

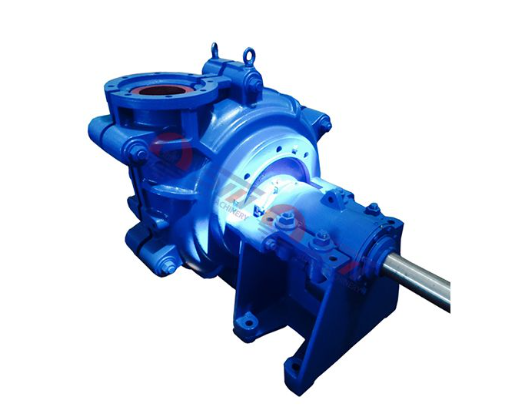

Horizontal slurry pumps are centrifugal pumps with a horizontally oriented shaft. Unlike vertical pumps, their motor and shaft arrangement allows for easier installation, maintenance, and operation in many industrial setups. These pumps are specifically engineered to handle fluids containing solid particles, often found in mining, mineral processing, wastewater treatment, and chemical manufacturing.
The key advantage of Horizontal Slurry Pumps is their durability under abrasive conditions. The pump’s components, including impellers, liners, and casings, are made from materials that resist wear, corrosion, and chemical damage. This ensures long service life even in demanding environments.
Understanding the main components of Horizontal Slurry Pumps can help operators improve efficiency and reduce downtime. The primary components include:
Pump Casing: Protects internal components and directs the slurry flow. Typically made from wear-resistant materials such as high-chrome alloy or rubber.
Impeller: The heart of the pump, responsible for transferring energy from the motor to the slurry. Open, semi-open, or closed designs are available based on application requirements.
Shaft: Connects the motor to the impeller and transmits mechanical energy.
Shaft Seal: Prevents slurry leakage along the shaft. Options include packing seals, mechanical seals, or expeller seals.
Bearing Assembly: Supports the shaft and reduces friction for smooth operation. Proper lubrication is crucial for long-term reliability.
Liners and Wear Plates: Protect the pump casing and impeller from abrasive wear, extending the pump's lifespan.
Horizontal slurry pumps are versatile and come in different designs to suit specific industry needs. Some common types include:
These pumps are ideal for general-purpose applications in mining, dredging, and industrial processes. They handle moderate slurry concentrations and particle sizes.
Engineered for high-density, highly abrasive slurries, these pumps are built with robust materials like high-chrome alloys. They are commonly used in mining, cement production, and mineral processing.
Designed for applications requiring high discharge pressures, such as pipeline transport of slurry over long distances.
The rubber lining provides enhanced resistance to corrosive slurries, making these pumps suitable for chemical plants, wastewater treatment, and acidic environments.
Horizontal slurry pumps have diverse applications across multiple industries due to their ability to handle challenging fluids. Key applications include:
Mining Industry: Transporting ore slurries, tailings, and abrasive minerals from mining sites to processing plants.
Metal Processing: Handling metal slurries in smelting, refining, and other metallurgical operations.
Chemical Industry: Moving corrosive or abrasive chemical slurries safely and efficiently.
Power Plants: Transporting ash slurry and wastewater in coal-fired power plants.
Construction and Cement: Pumping cement slurry, concrete, and other building materials in construction sites.
Selecting the appropriate Horizontal Slurry Pump depends on several factors:
Slurry Characteristics: Consider density, particle size, abrasiveness, and chemical composition.
Flow Rate and Head: Determine the required capacity and pressure for your process.
Material Selection: Choose pump materials compatible with slurry abrasiveness and chemical properties.
Maintenance Requirements: Evaluate the ease of maintenance and availability of spare parts.
Working with reputable brands like Sunbo Machinery ensures high-quality components and reliable performance, reducing downtime and operational costs.
Proper maintenance is essential to maximize pump life and efficiency. Here are some key practices:
Regular Inspection: Check for wear on the impeller, casing, and liners.
Lubrication: Maintain proper lubrication of bearings to prevent overheating and failure.
Seal Monitoring: Inspect mechanical seals and packing to avoid leakage.
Alignment Checks: Ensure the pump and motor shafts are properly aligned to prevent vibration and premature wear.
Performance Tracking: Monitor flow rate, pressure, and vibration to detect early signs of problems.
Regular preventive maintenance not only extends the pump’s lifespan but also improves energy efficiency and reduces operational costs.
Horizontal slurry pumps offer several benefits for industries handling abrasive fluids:
High Efficiency: Optimized impeller and casing designs improve flow and reduce energy consumption.
Durability: Wear-resistant materials ensure long-lasting performance even with abrasive slurries.
Ease of Maintenance: Horizontal design allows for easy access to internal components without disassembling the piping.
Versatility: Suitable for various industries, slurry types, and operating conditions.
Cost-Effective: Long service life and minimal downtime reduce overall operational costs.
Despite their robust design, Horizontal Slurry Pumps may face operational issues. Common problems include:
Cavitation: Occurs when vapor bubbles form and collapse in the pump, causing damage to the impeller. Ensure proper suction conditions and avoid air leakage.
Excessive Wear: Abrasive slurries can wear out liners, impellers, and casings. Regular inspections and using high-quality wear-resistant materials can mitigate this.
Leakage: Worn seals or improper installation may cause slurry leakage. Check and replace seals as needed.
Vibration: Misalignment, bearing failure, or impeller imbalance can lead to vibration. Regular maintenance and alignment checks are essential.
Addressing these issues proactively ensures optimal performance and longer service life.
To maximize efficiency and reliability of Horizontal Slurry Pumps:
Use pumps suited for your slurry type and operating conditions.
Choose high-quality materials, especially for impellers, casings, and liners.
Implement a scheduled maintenance plan.
Monitor pump performance using sensors and predictive maintenance technology.
Partner with trusted manufacturers like Sunbo Machinery for technical support and spare parts.
Q1: What industries use Horizontal Slurry Pumps?
A: Horizontal Slurry Pumps are widely used in mining, chemical processing, power generation, metallurgy, construction, and wastewater treatment.
Q2: How do I select the right pump for my slurry?
A: Consider slurry density, particle size, flow rate, head, and material compatibility. Consulting a manufacturer like Sunbo Machinery can help select the best pump.
Q3: Can Horizontal Slurry Pumps handle corrosive slurries?
A: Yes. Rubber-lined or special alloy pumps are designed to handle corrosive and abrasive slurries efficiently.
Q4: How often should I maintain a Horizontal Slurry Pump?
A: Maintenance frequency depends on usage and slurry abrasiveness. Typically, regular inspections should be done monthly, with more thorough maintenance every 6–12 months.
Q5: What is the difference between horizontal and vertical slurry pumps?
A: Horizontal pumps are easier to maintain and install in many industrial setups, while vertical pumps are better for deep sump applications where space is limited.
Horizontal Slurry Pumps are a cornerstone of modern industrial fluid handling. Their ability to manage abrasive, high-density, and corrosive slurries makes them indispensable across multiple industries. By understanding their components, types, applications, and maintenance needs, operators can maximize efficiency and longevity.
Choosing reliable manufacturers like Sunbo Machinery ensures access to high-quality pumps, expert guidance, and durable components. With proper selection, operation, and maintenance, Horizontal Slurry Pumps provide efficient, long-term solutions for industrial slurry transport.
Investing in the right pump today ensures smoother operations, lower maintenance costs, and improved productivity for years to come.
