Mission Magnum SXP Pump Spare Parts

  • The Mission Magnum XP Pump is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump.

Share

Sunbo Machinery offers an extensive line of pump spare parts designed to maximize the performance and longevity of your pumping systems. Our parts are crafted with precision, ensuring they meet the highest industry standards and provide reliable operation across various demanding environments.

Benefits of Our Pump Spare Parts

Exact Compatibility: Our pump spare parts are engineered for precise compatibility with a wide range of pump models, guaranteeing smooth integration and optimal performance.

Durable Construction: Utilizing advanced materials such as high-chrome alloys and wear-resistant components, our parts are built to withstand the rigors of harsh conditions, ensuring prolonged use.

Efficiency and Performance: Replacing worn components with our pump spare parts improves pump efficiency, reduces operational strain, and lowers the risk of unexpected breakdowns.

Comprehensive Selection: We offer a broad range of parts including impellers, wear plates, casing liners, and more, catering to all essential components required for effective maintenance.


Whether you operate in mining, construction, or wastewater management, our pump spare parts offer cost-effective, high-performance solutions to maintain the efficiency and durability of your systems. Keep your pumps in top shape with our reliable spare parts, ensuring consistent output and reduced downtime.



Mission Magnum XP Blender Pump

Mission Magnum XP Blender Pump is ideally suited for pumping high volumes of heavy fracturing sand slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high volume mobile and stationary applications where a small footprint is critical. High chrome alloy or hard iron material options for different applications.

The compact overall dimensions make it an excellent choice for high-volume mobile and stationary applications for which a small footprint is critical. Designed for continuous operation with minimal maintenance, this model is engineered to provide maximum seal life with low stuffing box pressure and an extra-heavy shaft design.

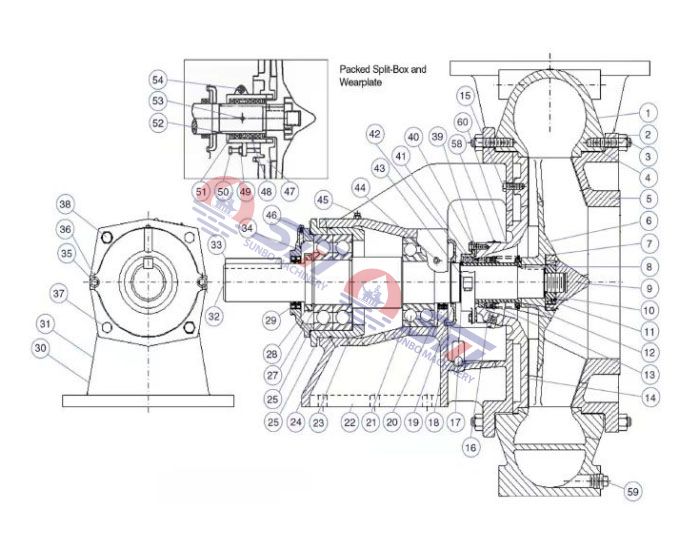

Magnum XP Pump Structure


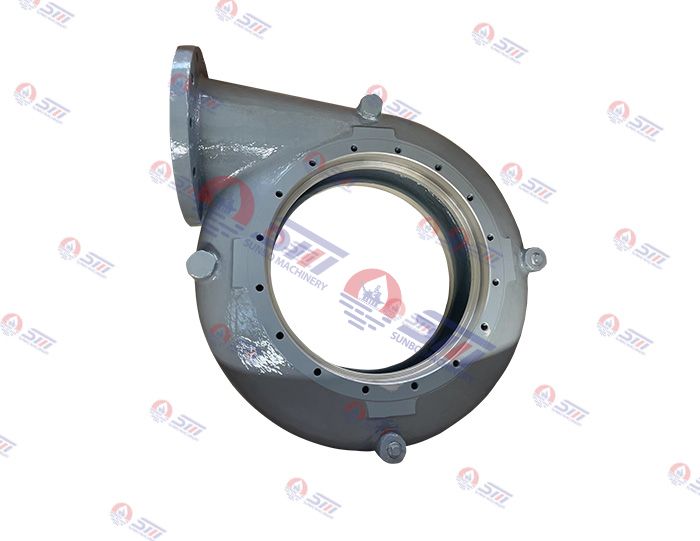

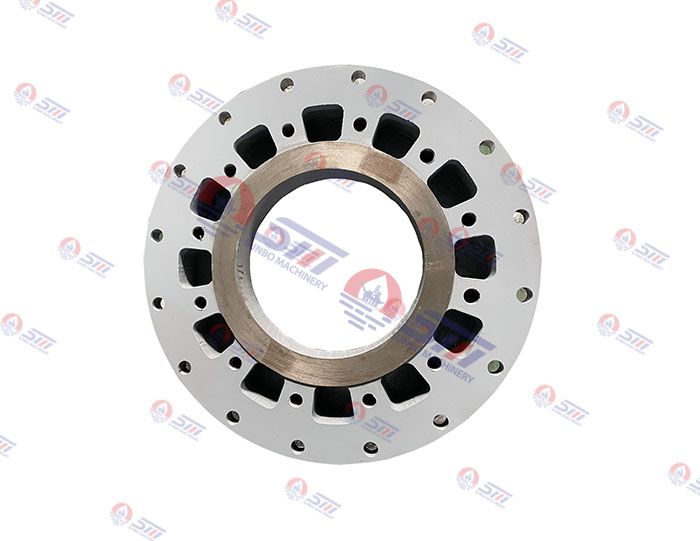

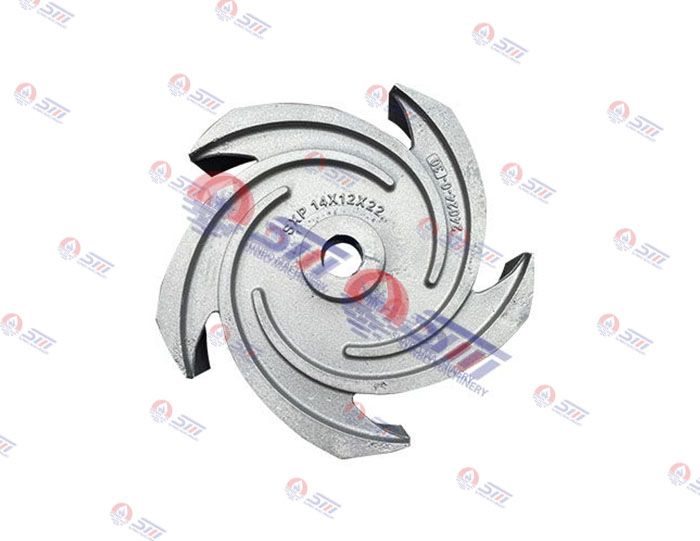

Mission Magnum SXP Pump Spare Parts

Mission Magnum SXP Pump Features:

● Full-open wide impeller.

● Long life no adjustment mechanical seal available for near zero leakage.

● Thick, concentric casing with replaceable casing wear pad.

● Hard iron and high chrome alloy material optional.

● Large power to ensure large flow rates and head pressure up to 500ft.

● Small footprint design is versatile for mobile and stationary application.

● Working for fracking industrial standard and blending application.

● Each casing is approved pressure test prior to delivery.

● Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.

● Shaft sleeves are made by 416SS and ceramic coating to protect shaft from abrasive fluids for extra life.

● Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.

● 100% compatible with NOV Mission Magnum XP, MCM XL series and current market offerings.

● The pumps can be unitized with Ex-proof electric motors, diesel engines in-line or over-belt driven configuration.


Item #DescriptionQty.Part No.SKU No.Item #DescriptionQty.Part No.SKU No.
1Casing, 14X12X22124022-01-30A65112020625Bearing, Outboard (14X12 )120616-2658413307

Casing, 12x10x23
25008-01-30A662001001
Bearing, Outboard (12X10 & 8X6)220616-3661009001

Casing, 8x6x18
25289-02-30A66200208926Seal, Bearing Cover17496-267658408802
2Nut, Casing323932-6164840201427Lock Washer16124-6658407002
3Stud, Casing (14X12 & 12X10)323862-8665840330828Lock Nut, Bearing16123-6658406509

Stud, Casing (8X6)163862-9060120828529Oil Seal, Bearing Cover220619-04658413638

Stud, Casing (8X6)163862-9264840111830Drive Screws612530601482417
4Gasket, Casing (14x12x22)210399-55-0165841050131Nameplate123017601501505

Gasket, Casing (12x10x23)
25012-01-0166101000132Shaft124028-33656420007

Gasket, Casing (8x6x18)
25012-02-0566201003233Key, Coupling14372-30-21658405055
5Cover, Front (14x12x22)124021-01-3065431030934Cover, Bearing O.B.124033-01-01654314004

Cover, Front (12x10x23)
25009-01-3066201400335Bolts, Bearing Cover23861-139648401081

Cover, Front (8x6x18)
25291-02-3066201412936Washer, Bearing Cover23936-19-L8648402030
6Impeller, 14x12 Clockwise Rot. 22"124024-X0-HS66200500337Nuts, Bearing Housing23932-62658404702

Impeller, 12x10 Clockwise Rot. 23"
25010-Y0-3066200500238Bolt, Bearing Housing43861-138648401057

Impeller, 8x6 Clockwise Rot. 18"
25292-T0-3066200501839Washer, Flat23936-19-L8648402030
7Seal, Impeller Nose17496-15865840810940Bolt, Packing Gland23861-165601408289
8Key, Impeller14372-29-2165840500641Gland, Packing Half224034-01-13654315100
9Nose, Impeller ( Hex Design)124025-04-25L65230960142Packing Set18264-344-K658409503

Nose, Impeller (Two Flat Design)
24025-01-25L65230960043Screw, Cap23909-04-87658404207

Nose, Impeller (2 Flat Ion Nitride)
24025-03-25L66201405444Plug, Grease1Jan-05601474695
10Screw, Set114430-1965841140045Breather1Jan-67601473689
11Jam Nut124026-25L65841425546Plug, Fitting119368661010020
12Seal, Impeller17496-15365840805958Plug, Pipe28505/2/1658409859
13Mechanical Seal (Crane Type)12403665841610259Plug, Pipe18505/6/1658410006
14Stuffing Box, Mech. Seal (14X12)124027-01-3065332230560Tag, Mechanical Seal122566603445727

Stuffing Box, Mech. Seal (12X10)
24027-02-30662014002Packed Split-Box and Wearplate

Stuffing Box, Mech. Seal (8X6)
25290-02-3066201412847Wearplate, Split Box124023-01-XX654310507
15Bolt, Stuffing Box23861-11764840101648Packing Set18264-345-K658409552
16Sleeve, Shaft124029-21BZ65642220149Nut and Washer Assembly222216-02658413935
17Seal, Sleeve17496-23465840850550Bolt, Split-Box23861-168
18Slinger124030-01-1365431160451Stuffing Box, Split224037-01-87654317007
19Seal, Slinger17496-238P65840855452Latern Ring Half224039-13658418207
21Oil Seal, Inboard Bearing220619-0365841360453Fitting, Grease119368-01601499403
21Bearing, Inboard120615-265841300054Screw, Cap23909-13-87658404405
22Frame 14X12124031-01-01654312008Auxiliary Tools

Frame 12X10
24031-02-0166201400155Tool, Impeller Nose & Nut124040658420203

Frame 8X6
25293-02-01662014130
Tool, Impeller Nose (HEX)
Standard Hex Socket
23Housing, Bearing124032-01-0165431300656Tool, Impeller Removal124041658420252
24Seal, Bearing Housing17496-27265840890157Tool, Shaft Holder124042658420302
